| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-45days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | CNC Turning Parts | Model: | DK Accuracy |
|---|---|---|---|
| Machining Tolerance: | ±/-0.01mm | Casting Type: | CNC Turning |
| Service: | OEM/ODM | Type: | Other Machining Services |
| High Light: | Lathe Metal CNC Turning Parts,SS201 Metal CNC Turning Parts,Railway Electronic CNC Turning Parts |
||

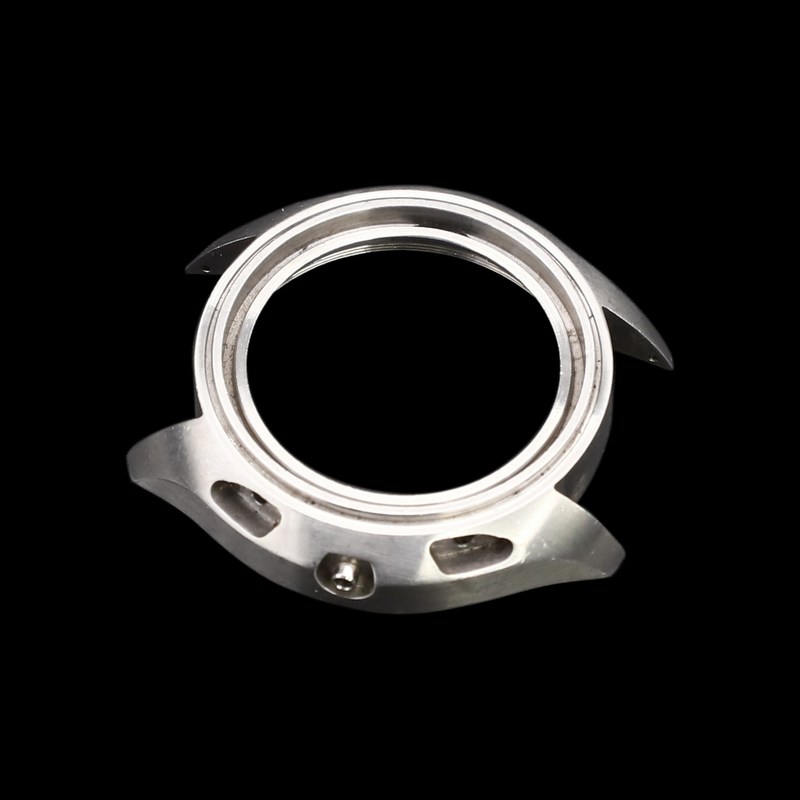

Lathe machinery metal CNC turning parts
CNC turning overview
CNC turning is a manufacturing process in which a metal circular blank is fixed in a chuck on a spindle and rotated, while a cutting tool is fed into the bar to remove material to form the desired shape.
Production Capacity:
| Machining Equipment: | 3/4/5 Axis CNC machining center, CNC engraving machine, CNC milling machine, CNC turning machine, high precision grinding machine, WEDM etc |
| Inspection Equipment: | KEYENCE Image Dimension Measuring System, Projector, CMM, Height Gage, Hardness Tester, Salt Spray Tester, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc. |
| Precision: | Min. tolerance can reach 0.005mm |
| Application: | Railway, Auto, Truck, Medical, Machinery, Equipment, Electronic, Electrical, Optical etc |
| Material Available: |
Aluminum: AL6061, Al6063, AL6082, AL7075, AL5052, AL2024, A380 etc Stainless steel: SS201, 301, SS303, SS304, SS316, SS430 etc Steel: alloy steel/ carbon steel including 4140, 4340, A36, 1020, 1045 etc Brass: HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc. Copper: C11000, C12000, C12000, C17200, C72900, C36000 etc. Plastic: ABS, PC, POM, Delrin, Nylon, Teflon, PP etc. |
|
Surface Treatment |
Aluminum parts: Anodization, Sandblast, Brushing, Polishing, Chrome Plating etc Stainless Steel parts: Polishing, Brushing, Passivating, Sandblasting, PVD vacuum plating Steel: Zinc plating, Nickel plating, Chrome plating, Powder Coating etc Plastic: Painting, Polishing, Chrome plating, Sandblast, Engraving |
The basis of CNC lathe
CNC lathes, also known as movable tool lathes, are ideal for cutting any symmetrical cylindrical or spherical parts. Typically, a lathe rotates the workpiece on a vertical or horizontal axis, while a fixed forming tool moves around the workpiece in a more or less linear path. The action of cutting a workpiece on a CNC lathe is called turning.
How CNC turning works
CNC lathes use subtraction to create the desired shape. After creating the G code, load the blank blank strip into the chuck of the lathe spindle. When the spindle rotates, the chuck fixes the workpiece in place. When the spindle reaches the maximum speed, the stationary cutting tool is brought into contact with the workpiece to remove material until the desired geometry is obtained.
Many operations can be performed on a movable tool lathe, including face finishing, threading, knurling, drilling, boring, reaming, and taper turning. Different operations require tool changes and may increase cost and set-up time.
After all processing operations are completed, parts will be cut out of inventory for further post-processing. The CNC lathe can then repeat this operation with almost no setup time.
