| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | P101 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | bag + box + polywood case |
| Delivery Time: | 30-45days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Stainless Steel Baluster Glass Railing System | Material: | SS304(V2A) / SS316(V4A) /SS316L |
|---|---|---|---|
| Glass Thickness: | 6mm-12.76mm | Glass Clamp: | D Shape, Square Shape |
| Height: | 900mm -1200mm | Type: | Corner / End / Mid |
| High Light: | stainless steel railing components,stainless steel balustrade components |
||

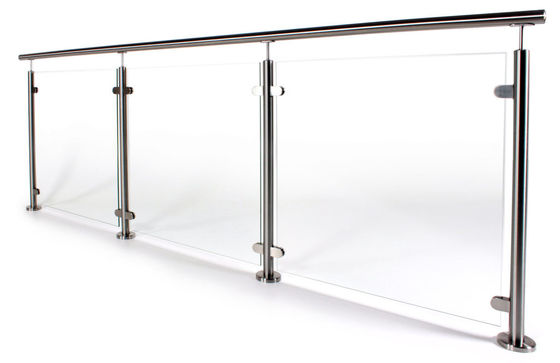

Stainless Steel Baluster Glass Railing System for Terrace/Commercial Building
| Product | Stainless Steel Baluster Glass Railing System for Terrace/Commercial Building |
| Diameter | 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm |
| Thickness | 1mm, 1.5mm, 2mm, 2.6mm or according to requirements |
| Height | 900-1200mm according to needs |
| Support | Flat or round for 33.7mm-50.8mm tube |
| Type | Mid / corner / end types |
| Material | SS304 / SS316 /SS316L |
| Surface | satin(brushed 320) / mirror |
| MOQ | 50pcs |
| Glass thickness | 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm |
| Production time | 35-45days according to quantities |
| Packing | Bag + box + pallet |
Application
Used in both residential and commercial applidations, Stainless Steel Baluster Glass Railing System for Terrace/Commercial Building allow you to showcase the view, rather than hide it.
Our system installs on site with no welding required – simply glue, drill and tap the pieces into place. Available in type AISI304 and AISI316 for either interior or exterior installation.

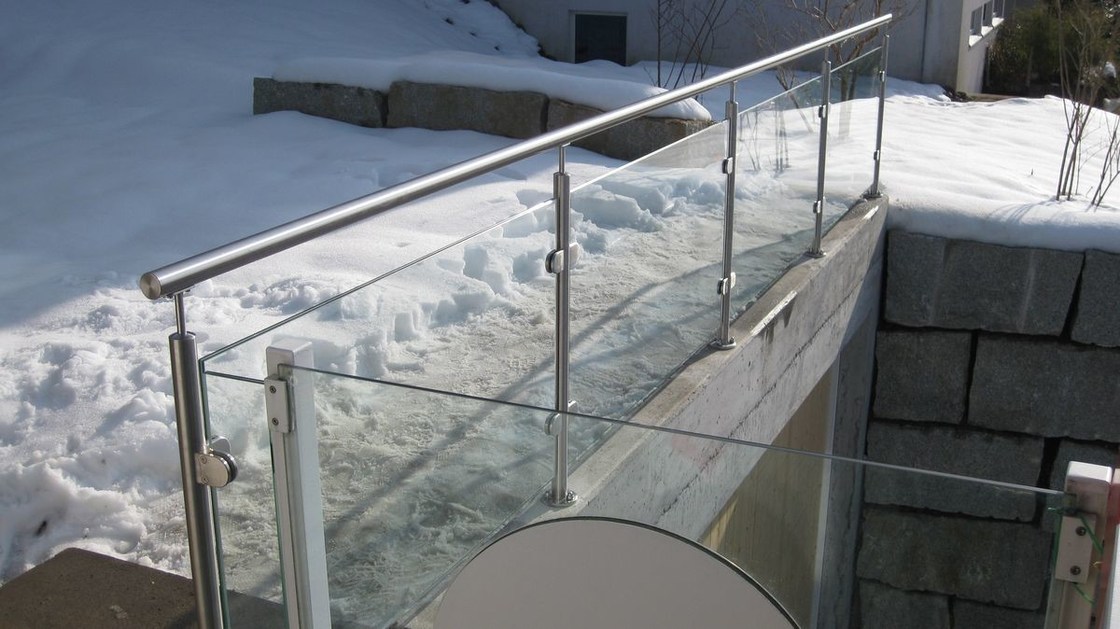

Stainless Steel Baluster Glass Railing System is designed for both indoor and outdoor uses, easily accommodated either glass or rod infill. From office buildings to apartment complexes, balconies to separations, no welding required.
Material
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.
Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.
Stainless Steel Baluster Glass Railing System for Terrace/Commercial Building allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.
