Place of Origin: | Qingdao, China |
Brand Name: | Compass |
Certification: | ISO 9001, SGS |
Model Number: | 601 |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Bag + Box + Carton + Pallet |
Delivery Time: | 30-40days according to quantity |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
Supply Ability: | 10000pcs per month |
Product: | Round Tubular Base Flange | Base: | 100*6mm |
---|---|---|---|
Height: | 70mm | Sizes: | 33.7mm-50.8mm |
Material: | AISI304, AISI316, AISI316L | Lead Time: | 35-45days |
High Light: | stainless steel rail fittings,stainless steel balustrade fittings |

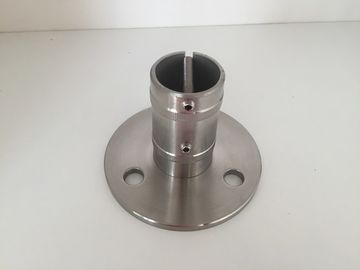

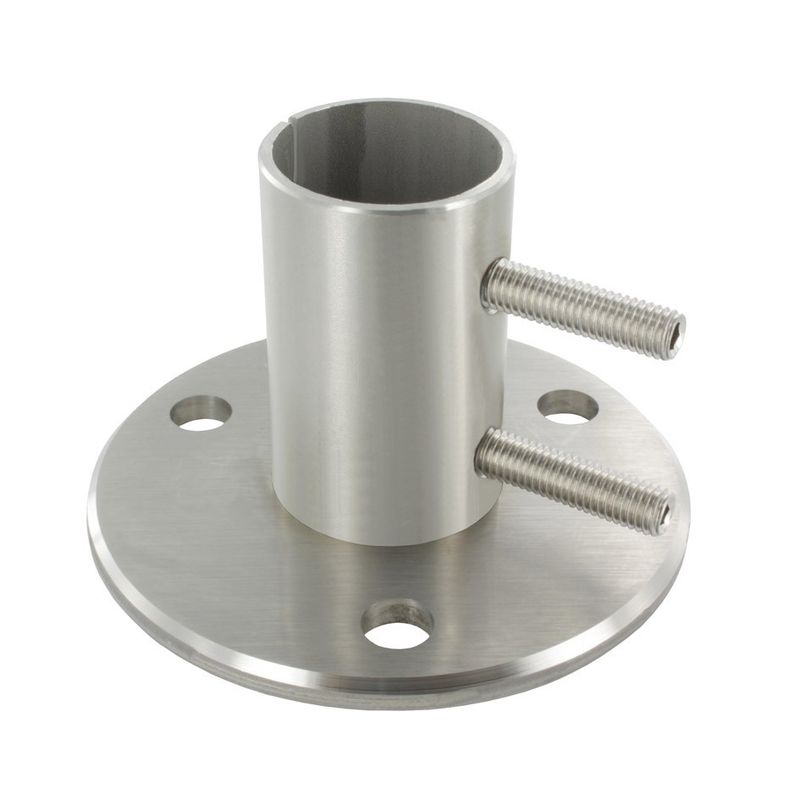

Stainless Steel Tube Railing Components Round Tubular Base Flange
This Stainless Steel Tube Handrail Round Tubular Base Flange can be used in both inetrior and outdoor, for residential and commercial buildings. They are widely used in stainless steel handrails, railings and balustrades. The quality materials keep them corrosion resistance, anti-rust and eco-friendly in nature.
Features.
Item | Handrail Round Tubular Base Flange |
Material | AISI3041, AISI316, AISI316L |
Finish | Satin(brushed), Mirror(polished) |
Base | 100*6mm |
Height | 75mm |
Available dimensions | 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm |
Packing | bag + box + carton + pallet |
Lead time | 35-45days |
Type | Base flange |
Application | Base plate for tubular balusters |
Free samples | Available |
Delivery term | FOB, CIF, CFR, DDU, DAP |
Available dimensions.
Item NO. | Sizes(mm) | Base(mm) | Height(mm) | Material |
601.337 | 33.7 | 100*6 | 75 | AISI304, AISI316 |
601.381 | 38.1 | 100*6 | 75 | AISI304, AISI316 |
601.424 | 42.4 | 100*6 | 75 | AISI304, AISI316 |
601.483 | 48.3 | 100*6 | 75 | AISI304, AISI316 |
601.508 | 50.8 | 100*6 | 75 | AISI304, AISI316 |
Compass Quality.
In house testing facilities and innovated process to assure the quality
- CNC centers
- Coordinate Measurement Machine (CMM)
- Spectrograph ( Make sure material are respecting the standards)
- Salt Spray Test
- 4 inspections.(material inspection, semi-finished inspection, inspection before packing, warehouse-out inspection)
Material Standard(%)
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
Care of Stainless Steel.
- Use pater or other protective wrapping one the surface of the stainless steel until processing is complete.
- Handle stainless steel with clean gloves or cloths to guard against stains or finger marks.
- Avoid the use of oily rags or greasy cloths when wiping the surface
- If possible, rinse with water after cleaning.
