Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount

Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount

  • Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount
  • Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount
Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount
Product Details:
Place of Origin: Qingdao, China
Brand Name: Compass
Certification: ISO 9001, SGS
Model Number: 508
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bag + Box + Carton + Pallet
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Name: 135 Degree Corner Post Mount Angle: 135 Degree
Type: Corner Tube Support Pipe DIA: Flat Or Round For 33.7, 38.1, 42.4, 48.3, 50.8mm
Material: V2A, V4A Lead Time: 35-45days
High Light:

stainless steel rail fittings

,

stainless steel balustrade fittings

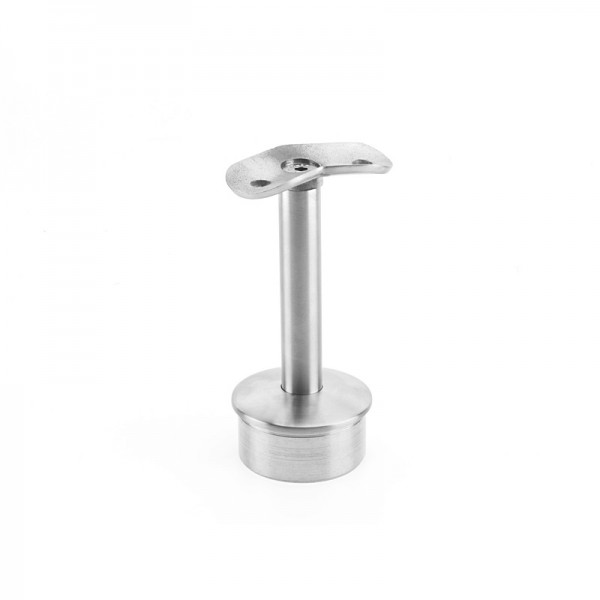

Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount



Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount 0



Available dimensions.



Item NO. Top saddle Bottom Dia Height Angle Material
508.000 flat According to needs 78mm 90° AISI304, AISI316
508.337 33.7mm 33.7mm 78mm 90° AISI304, AISI316
508.381 38.1mm 38.1mm 78mm 90° AISI304, AISI316
508.424 42.4mm 42.4mm 78mm 90° AISI304, AISI316
508.483 48.3mm 48.3mm 78mm 90° AISI304, AISI316
508.508 50.8mm 50.8mm 78mm 90° AISI304, AISI316



Application.



This is designed for both indoor and outdoor uses, easily accommodated either glass or rod infill. From office buildings to apartment complexes, balconies to separations, no welding required.



Remarks.



This Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount is widely used as corner pipe support for glass and infill balustrade, they can be casting or screw connected according to requirements. For this series, the top saddle could coud work with tubes in the same diameter with the bottom, or they can work with different diameter pipes according to special requirements. Send us the dimensions you need, more information could be confirmed accordingly.



Material

  C Si Mn P S Ni Cr Mo
AISI304 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 8.-10.0 18.0-20.0
AISI316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 10.0-14.0 16.0-18.0 2.0-3.0
AISI316L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 10.0-14.0 16.0-18.0 2.0-3.0



Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.



Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.

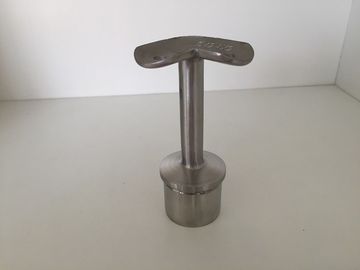

Stainless Steel Cable Porch Railing Fittings, 135 Degree Corner Post Mount 1
