Place of Origin: | Qingdao, China |
Brand Name: | Compass |
Certification: | ISO 9001 |
Model Number: | 107.0260 |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | 6pcs in a box, 10boxes in a carton. |
Delivery Time: | 30-40days according to quantity |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
Supply Ability: | 10000pcs per month |
Product Name: | Inox Round Double Side Glass Clamp | Shape: | Round |
---|---|---|---|
Diameter: | 60mm | Material: | SS304(V2A) / SS316(V4A) /SS316L |
Finish: | Satin(brushed) / Mirror(polished) | Glass Thickness: | 6mm-12.76mm Glass |
High Light: | stainless steel glass clips,stainless steel glass brackets |

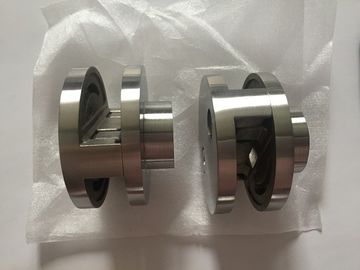

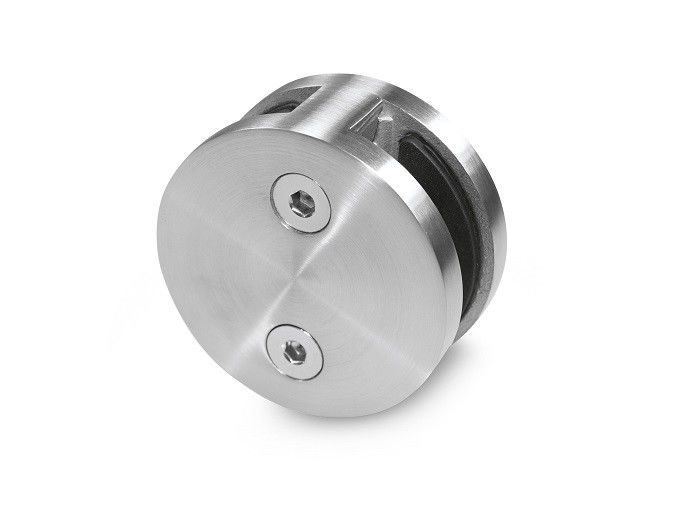

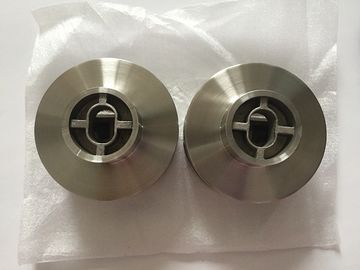

Inox Double Side Glass Clip for Stainless Steel Glass Balcony Railing Designs
Application:
Inox Round Double Side Glass Clamp for Glass Railing is widely used in glass balustrades for balcony, staircase, stairs, pool fencing in commercial and residential buildings.They could connect with square tube, or round tube in 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm. Single or doulbe sides ones are both available.
Feature
1. Base could be flat for square tubes or round for 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm tubes
2. Surface : brushed(satin) or polished(mirror).
3. Glass thickness: 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm
4. Easy installation and beautiful surface.
Products available.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
What can Compass do for you?
Dimensions
Item NO. | Base | Glass thickenss |
107.0260.000 | flat for square tube | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 |
107.0260.337 | for 33.7mm round tube | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 |
107.0260.381 | for 38.1mm round tube | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 |
107.0260.424 | for 42.4mm round tube | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 |
107.0260.483 | for 48.3mm round tube | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 |
107.0260.508 | for 50.8mm round tube | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 |
