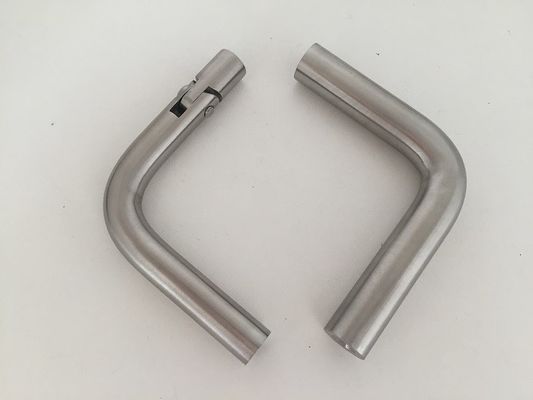

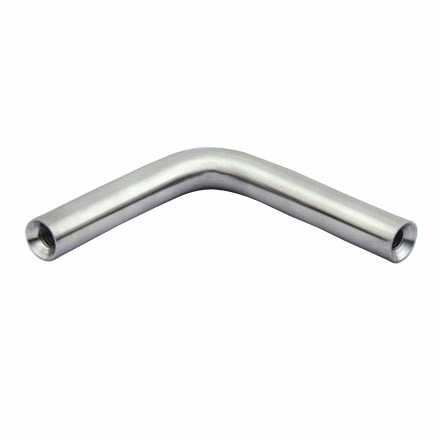

90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing

90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing

    • 90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing
    • 90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing
  • 90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Compss
    Certification: ISO 9001, SGS
    Model Number: 575

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Bag + Box + Carton + Pallet
    Delivery Time: 30-40days according to quantity
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Name: 90 Degree Tubular Bend With M6 Material: SS304, SS316, SS316L
    Finish: Satin, Mirror Polished Diameter: 12mm, 14mm
    Height: 69*69, 75*75 Application: Support Bar For Handrails
    High Light:

    stainless steel handrail fittings

    ,

    stainless steel balustrade fittings

    90 Degree Tubular Bend with M6 Working for Stainless Steel Stair Balusters



    Advantages of Compass.



    1. Standard materials.

        AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0

        AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

         AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00



    2. One-stop supplier

        With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.



    3. Steady and fast delivery time

        With strickt controlling system according ISO9001, steady delivery time can be confirmed.

        Casting ones need 35-40days.

        Machining ones need 20-35days.

        Tubes and rubbers need 20days



    4. Low MOQ.

        As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.



    5. Destination service.

        DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.



    6. OEM & ODM

        With professional technical team, new designs and customnized parts are welcomed.



    Item NO. DIA Height Inner thread Material
    575.12.69.M6 12mm 69*69mm M6 V2A, V4A
    575.14.69.M6 14mm 69*69mm M6 V2A, V4A
    575.12.75.M6 12mm 75*75mm M6 V2A, V4A
    575.14.75.M6 14mm 75*75mm M6 V2A, V4A



    90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing 0



    General information.



    1. Material: SS304 (V2A) or SS316 (V4A).

    2. Surface : brushed(satin) or polished(mirror) according to requirements.

    3. Outer DIA. : 12mm or 14mm

    4. Length: 69*69mm, 75*75mm or customized

    5. Lead time : 35-45days according to order quantity.

    6. Delivery term : FOB, CIF, CFR, DDU, DAP.

    7. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.

    8. Packing : bag + inner box + carton + pallet.



    Remarks.

    The dimensions can be customized according to requirements.



    Why Compass?



    8 hours

    Your inquiry will always be replied within 8 hours, our professional sales team will help you with every question.



    4 quality control steps

    Each product from Compass will pass 4 quality control steps before finished: raw material inspection, mid-production inspection, full inspection before packing and warehouse-out inspection. We believe quality articles is the best advertisement.



    99.5%

    The satisfaction of our after-sale service is 99.5%. But we will keep working hard, to make everything from Compass better.



    100%

    We're responsible for every piece(100%) from Compass. We will re-prepare and replace the items if there're unqualified ones affecting the selling or appliance because of our quality.



    Application.



    This series are widely used as support for top handrails in stainless steel outdoor handrails, steel and glass stair railing and stainless steel stair handrails.



    90 Degree Support Bar Internal Thread M6 For Stainless Steel Stair Railing 1
