|Place of Origin:||Qingdao, China|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||4pcs in a box, 10boxes in a carton.|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||Square Glass Clamp With 12mm Glass||Dimension:||52*52*32mm|
|Glass Thickenss:||6mm-12.76mm||Surface:||Satin(brushed) / Mirror(polished)|
|Material:||SS316,S.S.304||Finish:||Satin Or Polished|
stainless steel glass clips,
stainless steel glass brackets
Made Of SS304 Or SS316 Stainless Steel Glass Clamps Is Mainly Used For Outdoor

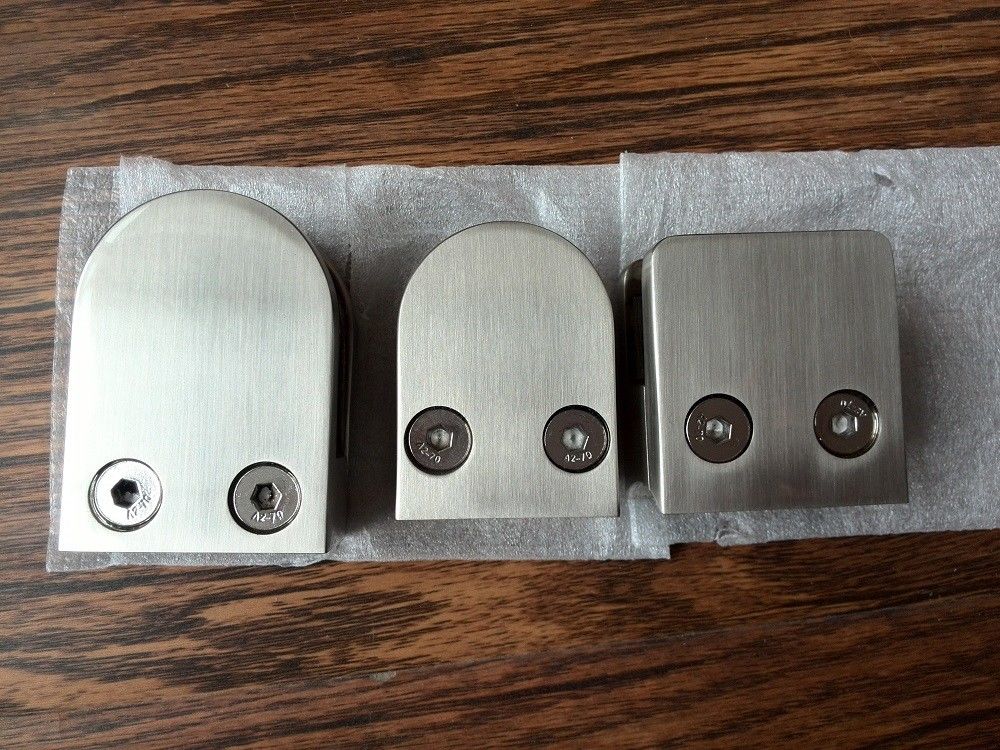

SS304 or SS316 stainless steel glass clamps description
Material: SS304 or SS316
Usage: indoor or outdoor
Surface: satin / brushed surface or mirror / polished surface
1, SS304 or SS316 stainless steel glass clamps are a very common part of the railing system. They are divided into flat and concave forms and can be used with round or square railings, glass mounting racks or other building panels.
2, According to your different needs, SS304 (V2A) stainless steel glass clips can be installed indoors, and SS316 (V4A) stainless steel glass clips can be used outdoors, with better anti-rust and anti-corrosion performance. And it also has a certain aesthetics. If better performance is required, SS316L stainless steel glass clamps are also available.
3, The surface of the stainless steel glass clip is treated with a satin / brushed surface or a mirror / polished surface, which can maintain the aesthetics during use.
Simple DIY installation stainless steel glass clamps Specifications.
|Glass thickness||6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm|
|Material||SS304 / SS316 /SS316L /DUPLEX 2205|
|Surface||satin(brushed 320) /mirror|
|Production time||35-45days according to quantities|
|Packing||Plastic bag/pc, 4pcs in a box, 10boxes in a carton|
|Payment term||T/T30% as deposit, 70% payed according to documents copy.|
|ODM & OEM||YES|
|Delivery term||FOB, CIF, CFR, DDU, DAP|
1. Base could be flat for square tubes or round for 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm tubes
2. Surface : brushed(satin) or polished(mirror).
3. Glass thickness: 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm
4. Easy installation and beautiful surface.
Stainless steel glass clamp application
A, Our satin stainless steel glass clamps is a universal part of the railing system. They come in two forms, flat and concave, and can be used with round or square railings, glass mounts, or other building panels.
B, When it comes to our glass solutions, one thing is clear: safety first? All glass clamps are certified to grip the glass panel with great strength. Our glass clamps have passed the successful tests of tempered glass and laminated glass.
C, The glass railing system composed of stainless steel glass clamps can be used in residential and commercial buildings, and you can display rather than hide the view.
|AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00|
|AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00|
|AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00|
You are welcome to buy 52 * 52 * 32mm Stainless Steel Glass Clamps!
