Name: AISI304 12mm Frosted Stainless Steel Glass Clamps
Brand: Compass
SKU: 1060.160

Home Products Stainless Steel Glass Clamps

AISI304 12mm Frosted Stainless Steel Glass Clamps

Product Details:

Place of Origin:	Qingdao, China
Brand Name:	Compass
Certification:	ISO 9001
Model Number:	1060.160

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	4pcs in a box, 10boxes in a carton.
Delivery Time:	30-40days according to quantity
Payment Terms:	L/C, T/T, Western Union, D/A, D/P
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Name:	Glass Clamp With 10mm Glass	Dimension:	40x50mm
Glass Thickenss:	12mm	Surface:	Satin(brushed) / Mirror(polished)
Packing:	4pcs In A Box, 10boxes In A Carton, With Pallet Outside	Lead Time:	35-45days
High Light:	Frosted Stainless Steel Glass Clamps , 12mm Stainless Steel Glass Clamps , AISI304 Stainless Steel Glass Clamps

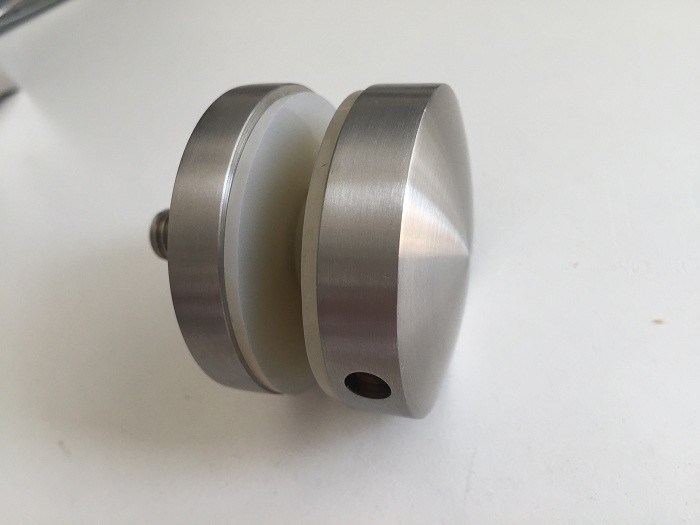

12mm Frosted Stainless Steel Glass Clamp

The glass railing system is very popular now. More and more people want to take advantage of the excellent views provided internally and externally. For traditional dark and enclosed spaces such as stairs, glass railings can really help open the space and allow plenty of light. The glass guardrail is made of tough glass, strong and sturdy, and absolutely safe when used in the home. If you want to install your own glass railing, please refer to the following tips on how to install glass clamps.

Choose how to fix the glass panel?

When installing a glass guardrail, you need to decide how to fix the glass panel to the bracket. You have two main options-channel or post. In order to achieve the frameless glass railing effect, the glass panels can be fixed in place through metal channels embedded in the floor. Since you need to cut into the current floor, this option may require more time and skill. On the bright side, you will get an uninterrupted view of the glass and you can enjoy the view.

Alternatively, the glass panel can be supported in place by a glass clamp connected to the railing post. The post itself need not be too large or unattractive. You can choose a slim and unobtrusive design made of stainless steel, wood, marble or stone. All these materials can be fixed with stainless steel glass clamps. Timber railing posts are a bit unusual because they are soft enough to screw glass clips directly in. For metal and stone railing posts, you need to punch holes.

How to install the glass clamp?

The key to remember when installing fixtures on glass panels is weight distribution. You need to ensure that the weight of the glass is evenly distributed along the length of the column and not heavier at the top or bottom. We recommend that you use 4 clamps per square meter of glass to ensure reliable support. Usually, people will fix the clamps on the top and bottom of the column. Just make sure they are exactly the same in every position.

If the clamp is installed correctly, there is no need to drill holes in the glass. Don't try to do this, because tempered glass can only be drilled in the early stages of production.

When purchasing a fixture, please check carefully whether the size is suitable for the thickness of the glass. Otherwise, the glass will be too loose in the fixing device to be fixed in place. It's too tight, and glass doesn't fit at all. Most clamps have adjustable screws, so you can tighten the clamps to the proper position around the glass panel. They usually also have rubber gaskets that can stretch around the glass during installation and then spring back into place.

We recommend that you gradually tighten the glass clamps on a piece of glass at the same time. If you tighten one completely, the glass may begin to bend or even break. By performing a little operation around the panel at a time, the pressure is evenly distributed.

Specifications.

Dimension	405026mm
Glass thickness	6mm,6.76mm,8mm,8.76mm,10mm,10.76mm
Material	SS304 / SS316 /SS316L /DUPLEX 2205
Surface	satin(brushed 320) /mirror
MOQ	100pcs
Free samples	YES
Production time	35-45days according to quantities
Packing	Plastic bag/pc, 4pcs in a box, 10boxes in a carton
Payment term	T/T30% as deposit, 70% payed according to documents copy.
Destination service	Available
ODM & OEM	YES
Delivery term	FOB, CIF, CFR, DDU, DAP

Material

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.

Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.
