| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 535 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Product Name: | Adjustable Wood Railing Handrail Pipe Support | Support Bar: | 14mm / 25mm |
|---|---|---|---|
| Top Saddle: | Flat Or Round For 33.7-50.8mm Tubes | Type: | Adjustable Top Saddle |
| Lead Time: | 35-45days | Position: | Stair Railings / Handrails,balcony Railings/ Handrails |
| High Light: | wood handrail fittings,wood stair handrail parts |
||

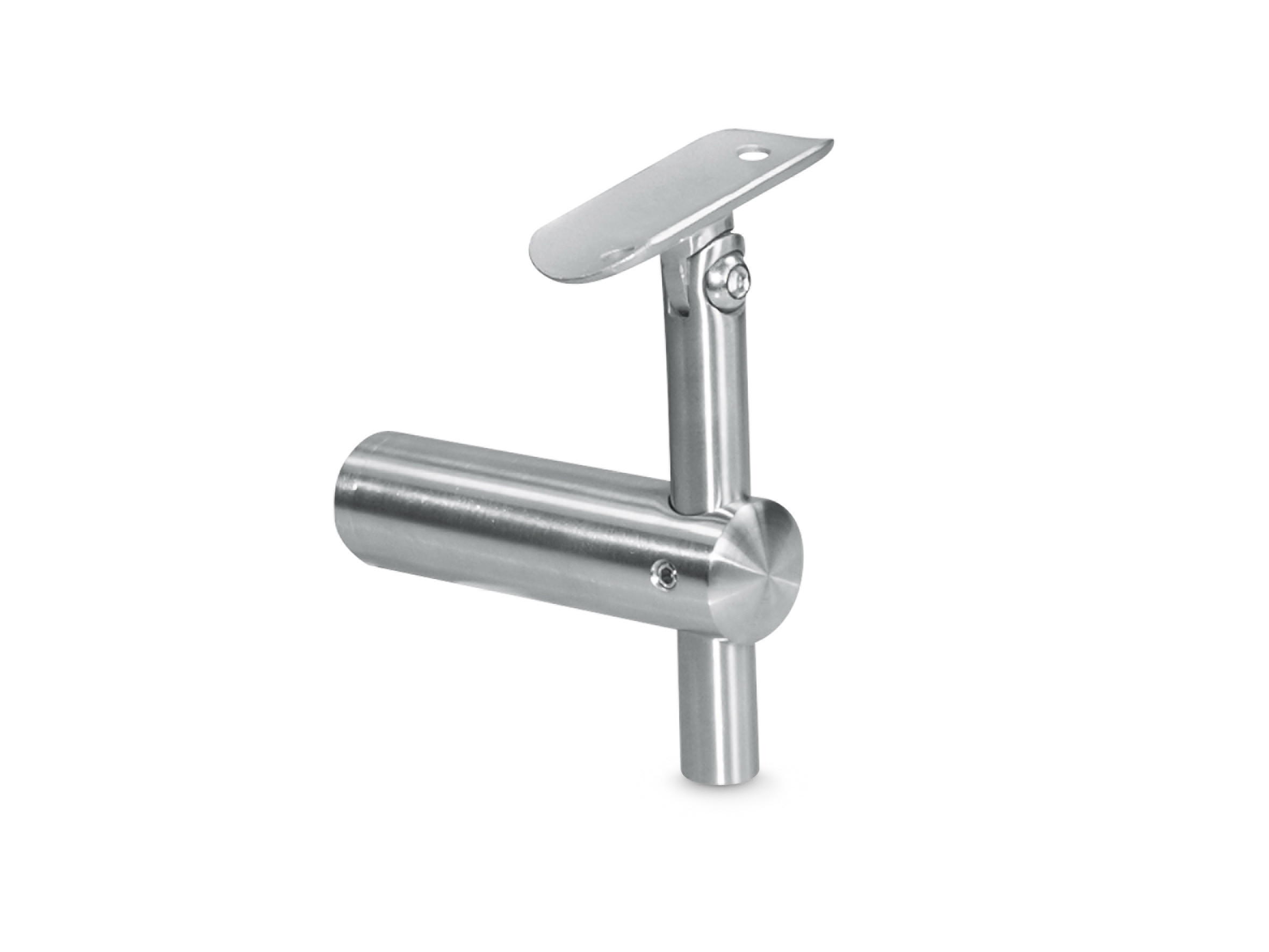

Adjustable Wood Railing Handrail Pipe Support for Staircase, Stairs
Features.
1. This design is used as handrail - wall / post connectors. Material is in SS304 (V2A) or SS316 (V4A). Surface could be brushed(satin) or polished(mirror) according to requirements. Available top saddle is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.The base could be flat or round for 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm. Customized dimensions are welcomed too.
General lead time is 35-45days according to order quantity. Usual packing is bag + inner box + carton + pallet outside. Delivery term coud FOB, CIF, CFR, DDU, DAP according to needs. The departure port is Qingdao or according to needs. Our payment term is T/T30% as deposit, 70% payed according to Bill of Lading.
Available dimensions.
| Item NO. | Top Saddle(mm) | Base (mm) | Glass(mm) | Support Rod(mm) |
| 535.000 | flat for square tubes | 50 | 8-21.52 | 14 / 25 |
| 535.337 | 33.7 | 50 | 8-21.52 | 14 / 25 |
| 535.381 | 38.1 | 50 | 8-21.52 | 14 / 25 |
| 535.424 | 42.4 | 50 | 8-21.52 | 14 / 25 |
| 535.483 | 48.3 | 50 | 8-21.52 | 14 / 25 |
| 535.508 | 50.8 | 50 | 8-21.52 | 14 / 25 |
Material types.
304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.
316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.
316L is the low carbon version of 316.
Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
Application.
This handrail - baluster / wall bracket can be used as pipe support in both stainless steel railings or wood handrails as pipe supporter. AISI304 ones are for interior designs, AISI316 and AISI316L ones are used in exterior designs. They can work well in stainless steel stairs, staircases, balcony, terrace, deck, ect.
