| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 307 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Product Name: | Stainless Steel Corner Side Outlet | Diameter: | 33.7, 38.1, 42.4, 48.3, 50.8mm |
|---|---|---|---|
| Material: | V2A, V4A | Surface: | Brushed(satin), Polished(mirror) |
| Type: | Corner Elbow | Usage: | Bluastrade Indoor Or Outdoor |
| High Light: | stainless steel handrail fittings,stainless steel balustrade fittings |
||

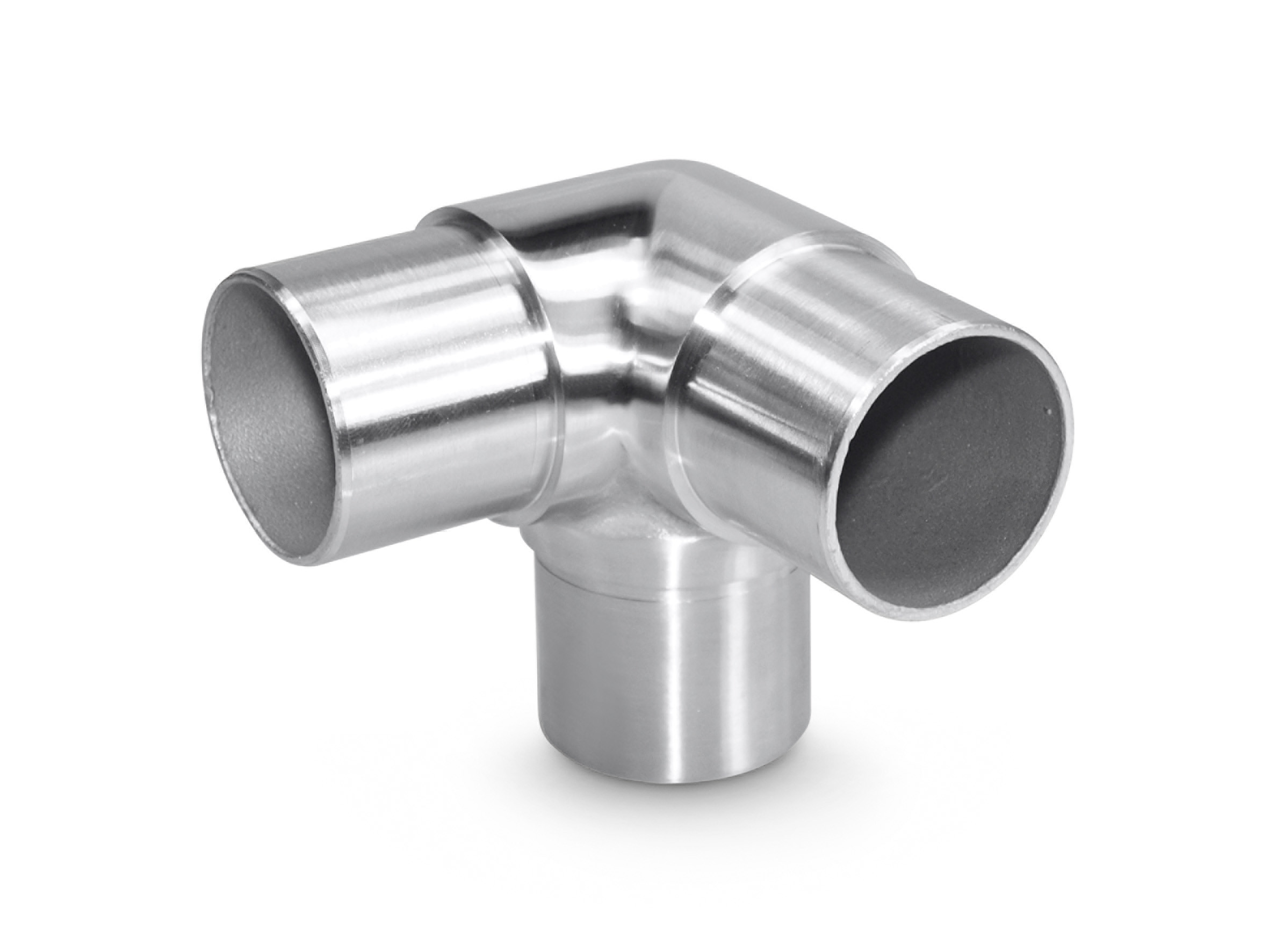

42.4mm Corner Side Outlet Working for Stainless Steel Tubular Handrail Systems
Available dimensions.
| Item NO. | Outer DIA | Tube thickness | Material | Surface |
| 307.337 | 33.7mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 307.381 | 38.1mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 307.424 | 42.4mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 307.483 | 48.3mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 307.508 | 50.8mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
Advantange of Compass
1. One-stop supplier
With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.
2. Standard materials is as followin
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
3. Destination service.
DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.
4. Steady and fast delivery time
With strickt controlling system according ISO9001, steady delivery time can be confirmed.
Casting ones need 35-40days.
Machining ones need 20-35days.
Tubes and rubbers need 20days
5. Low MOQ.
As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.
6. OEM & ODM
With professional technical team, new designs and customnized parts are welcomed.
7. Free samples are available for checking.
Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
Material
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
Drawings and design supplied.
Visiting our factory.
After-Sales Service
8hours * 6days online service.
Timely updating on production status.
Fast respond on quality complain within 24 hours.
