Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade

Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade

  • Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade
  • Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade
Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade
Product Details:
Place of Origin: Qingdao, China
Brand Name: Compass
Certification: ISO 9001, SGS
Model Number: P205
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Bag + Carton + Plywood case
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Name: 316 Marine Grade Brushed Post Glass Clamp: 40*50, 45*63, 45*45, 52*52, 55*55mm
Glass Thickness: 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76mm Material: AISI304, AISI316
Surface: Brushed(satin) Or Polished(mirror) Application: Glass Balustrade, Glass Handrails
High Light:

stainless steel railing components

,

stainless steel handrail components

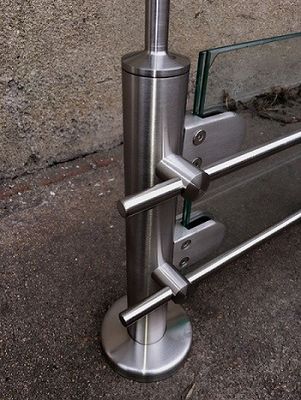

316 Marine Grade Brushed Stainless Steel Glass Balustrade Posts



Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade 0



Our Railing systems allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.



Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade 1



tem NO. P205
Diameter 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm
Thickness 1mm, 1.5mm, 2mm, 2.6mm or according to requirements
Height 900-1200mm according to needs
Support Flat or round for 33.7mm-50.8mm tube
Material SS304 / SS316 /SS316L
Surface satin(brushed 320) / mirror
Available glass clamps 40*50, 45*63, 45*45, 52*52, 55*55mm
Glass thickness 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm
Production time 35-45days according to quantities
Packing bag + carton + pallet



Features.



1. Qualified V2A ones are used indoor, V4A ones are used outdoor with better corrosion protection performance.

2. The top saddle could be flat for square tube or round for 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm pipes according to needs.

3. Surface could be brushed(satin) or polished(mirror).

4. Different shape glass clamps could be choosen, 40*50mm, 45*63mm, or square shape - 45*45mm, 55*55mm, 52*52mm.

5. Glass thickness could be 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm with different sizes.

6. The body of the post can be 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm or customized sizes according to needs.

7.  General  total height is 900mm - 1200mm.



Usage.

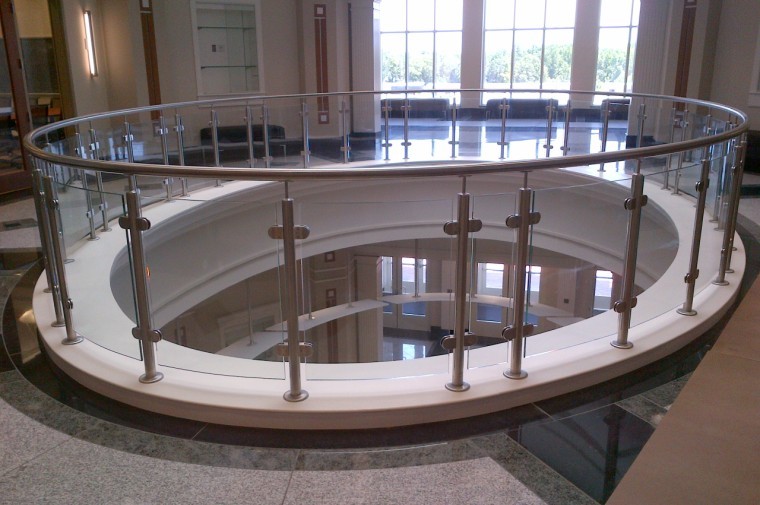

These posts are widely used in staircase, balcony, terrace, handrails, pool fence, stairs, gardens.

According to different requirements, SS304(V2A) ones could be installed indoor, and SS316(V4A) ones could be used outdoor, which with better rust protection and non-corrosion. SS316L ones can also be suppllied if much better performance is required.



General terms:

- Lead time: 30-50days according to order quantities.

- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.

- Departure port: Qingdao or other ports according to needs.



Brushed / Polished Stainless Steel Balustrade Posts 316 Marine Grade 2
