Place of Origin: | Qingdao, China |
Brand Name: | Compass |
Certification: | ISO 9001, SGS |
Model Number: | P101 |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | Negotiable |
Packaging Details: | bag + box + polywood case |
Delivery Time: | 30-45days according to quantity |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
Supply Ability: | 10000pcs per month |
Name: | Stainless Steel Glass Baluster Railing | Material: | SS304(V2A) / SS316(V4A) /SS316L |
---|---|---|---|
Glass Thickness: | 6mm-12.76mm | Glass Clamp: | D Shape, Square Shape |
Height: | 900mm -1200mm | Application: | Balcony, Commercial Building |
High Light: | stainless steel railing components,stainless steel balustrade components |

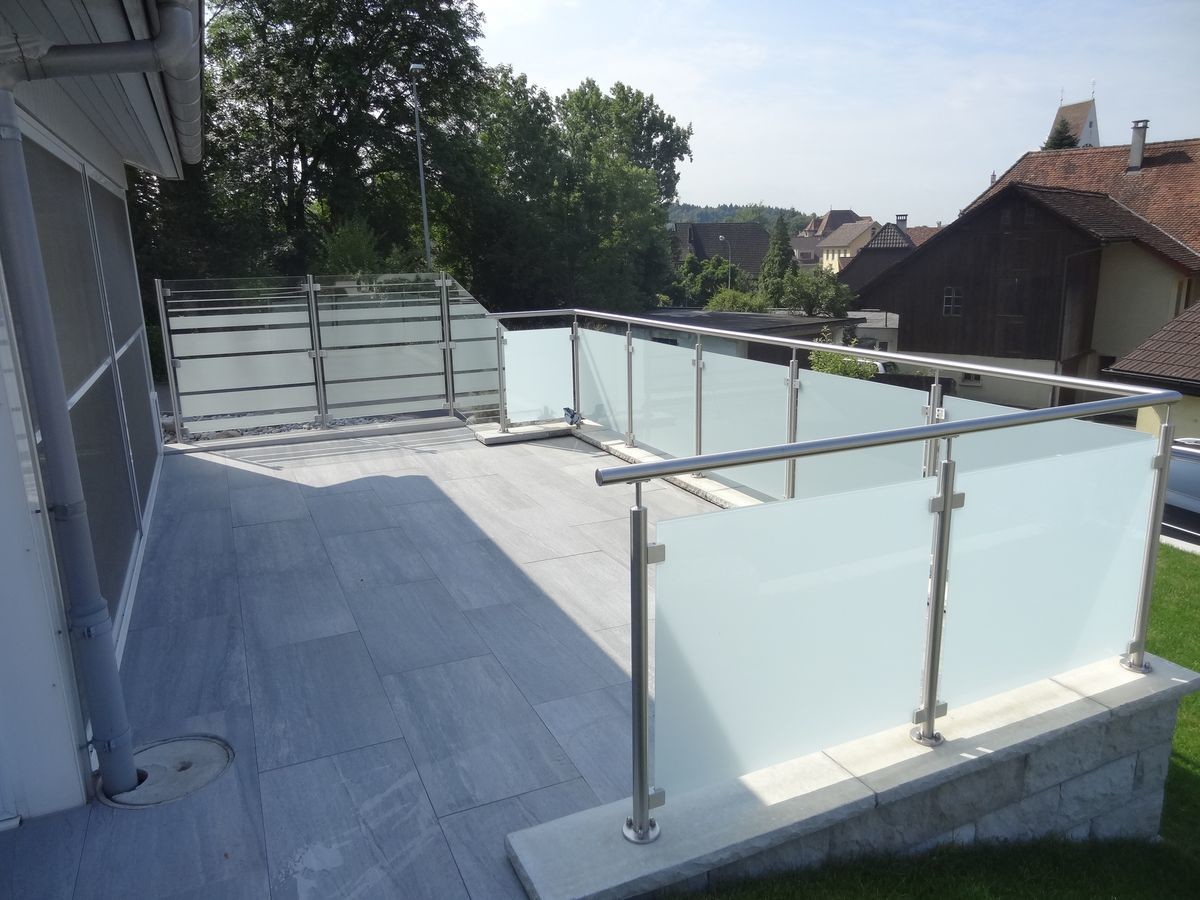

Stainless Steel Glass Baluster Railing with 12mm Tempered Glass
Stainless Steel Glass Baluster Railing with 12mm Tempered Glass allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.
Material
C | Si | Mn | P | S | Ni | Cr | Mo | |
AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.
316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.
316L is the low carbon version of 316.
Product | Stainless Steel Glass Baluster Railing with 12mm Tempered Glass |
Diameter | 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm |
Thickness | 1.5mm, 2mm, 2.6mm or according to requirements |
Height | 900-1200mm according to needs |
Support | Flat or round for 33.7mm-50.8mm tube |
Type | Mid / corner / end types |
Material | SS304 / SS316 /SS316L |
Surface | satin(brushed 320) / mirror |
MOQ | 50pcs |
Glass thickness | 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm |
Production time | 35-45days according to quantities |
Packing | Bag + box + pallet |
Used in both residential and commercial applidations, Stainless Steel Glass Baluster Railing with 12mm Tempered Glass allow you to showcase the view, rather than hide it.
Our system installs on site with no welding required – simply glue, drill and tap the pieces into place. Available in type AISI304 and AISI316 for either interior or exterior installation.
Stainless Steel Glass Baluster Railing with 12mm Tempered Glass is designed for both indoor and outdoor uses, easily accommodated either glass or rod infill. From office buildings to apartment complexes, balconies to separations, no welding required.
