|Place of Origin:||Qingdao, China|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||4pcs in a box, 10boxes in a carton.|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||Square Glass Clamp With 12mm Glass||Dimension:||52*52*32mm|
|Glass Thickenss:||6mm-12.76mm||Surface:||Satin(brushed) / Mirror(polished)|
|Usage:||Indoor Or Outdoor||Size:||Can Be Customized.|
stainless steel glass clips,
stainless steel glass brackets
The Surface Of the Stainless Steel Glass Clip With a Glass Thickness of 6 mm to 12.76 mm Is Satin-Finished (Frosted)
A , Our glass calmps are very versatile part of the railing systems. Available in both flat and concave back, they can be used with either round or square balusters ot mount glass or other architectural panels.
|B , For our glass solutions, one thing is clear: safety first? Mirror-treated stainless steel glass clips All glass clips are certified to hold the glass panel with great strength. Our glass clamps have passed the successful tests of tempered and laminated glass|
C , This big square glass holder is designed for 12.76mm glass at most, it can be used for glass balustrade in balcony, staircase, swimming pool fencing and according to needs.
|D , According to different requirements, SS304(V2A) ones could be installed indoor, and SS316(V4A) ones could be used outdoor, which with better rust protection and non-corrosion. SS316L ones can also be suppllied if much better performance is required.|
|Glass thickness||6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm|
|Material||SS304 / SS316 /SS316L /DUPLEX 2205|
|Surface||satin(brushed 320) /mirror|
|Production time||35-45days according to quantities|
|Packing||Plastic bag/pc, 4pcs in a box, 10boxes in a carton|
|Payment term||T/T30% as deposit, 70% payed according to documents copy.|
|ODM & OEM||YES|
|Delivery term||FOB, CIF, CFR, DDU, DAP|

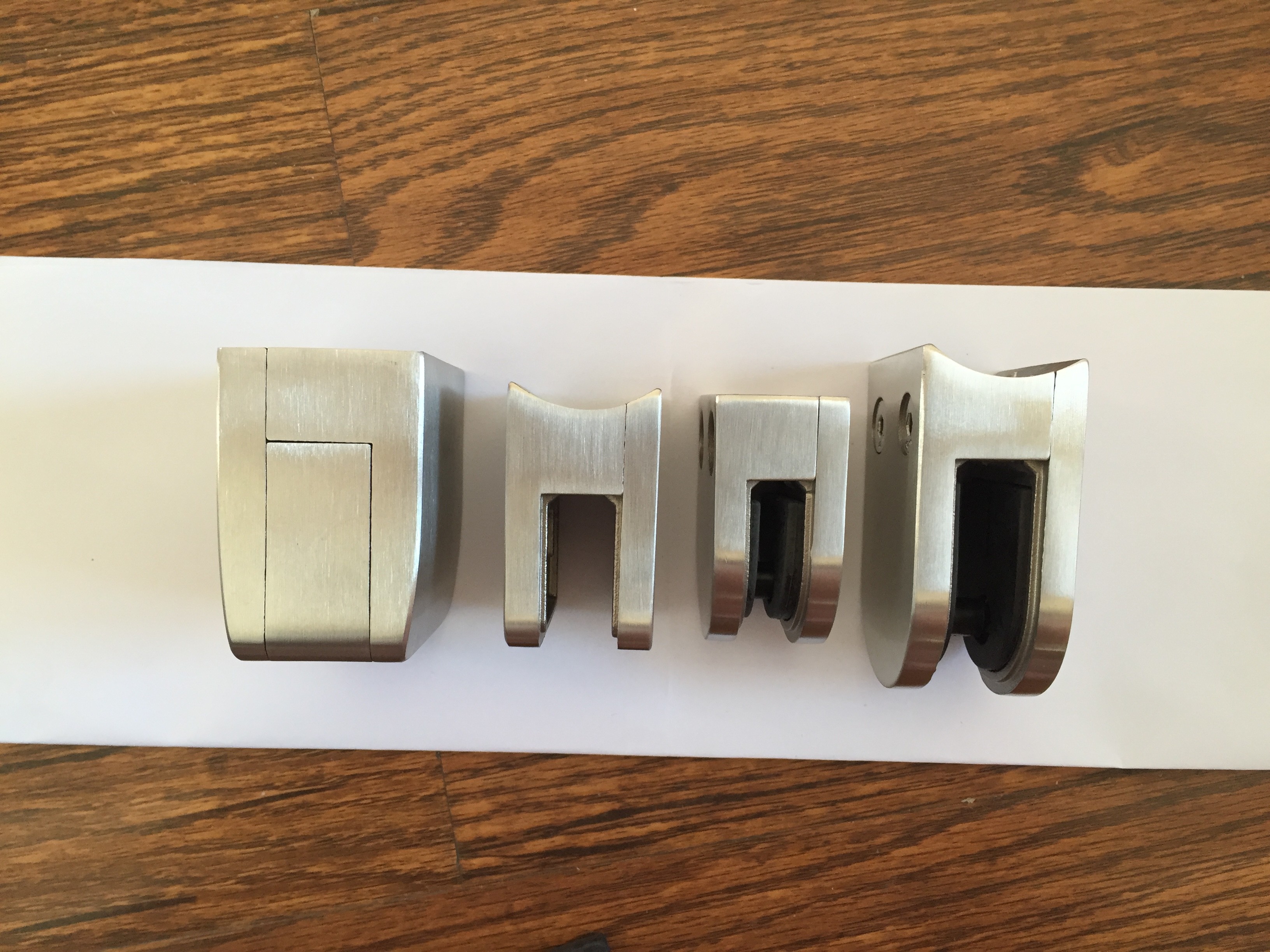

Stainless steel glass clamps construction
1,Select from flat back clamps or curved backs ( to suit 48mm tube)
2,Satin polished (brushed finish) stainless steel grade 316
3,Satin-finished stainless steel glass clips comes standard with 10mm glass rubber.
4,6mm to 12.76mm stainless steel glass clamps can be used inside or outside
5,See PDF for glass clamp measurements
6,Our clamps will hold the toughened glass panel without need to have holes in it, although if the glass is being used above head height we advise using the provided security pins with 14mm holes in your glass for safety.
7,Supplied with security pin (optional use)
Stainless steel glass clips available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.
Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.
