|Place of Origin:||Qingdao, China|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||4pcs in a box, 10boxes in a carton.|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||Square Glass Clamp With 12mm Glass||Dimension:||52*52*32mm|
|Glass Thickenss:||6mm-12.76mm||Surface:||Satin(brushed) / Mirror(polished)|
|Application:||Balcony||Installation:||Easy Diy Install|
stainless steel glass clips,
stainless steel glass brackets

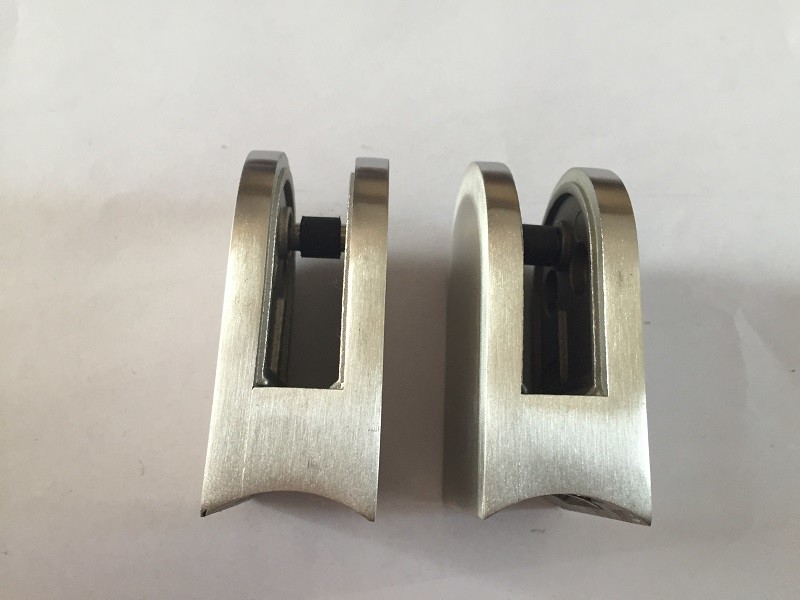

52*52*32mm Stainless Steel Glass Clamps Satin Treatment (Matte)
Simple DIY installation stainless steel glass clamps description
D-type simple DIY installation stainless steel glass clamps with flat bottom can be fixed on the wall or floor of the square column and stained [dark polished]. A perfect solution for flat glass supports and clips, and create railing systems, partitions, railings, windbreaks, display and sneezing guards. No holes are needed in the glass, but optional pins are provided. Suitable for internal and external glass use.
A , Our glass calmps are very versatile part of the railing systems. Available in both flat and concave back, they can be used with either round or square balusters ot mount glass or other architectural panels.
|B , For our glass solutions, one thing is clear: safety first ? simple DIY installation stainless steel glass clamps, All glass clamps are certified to securely fix the glass panel. We also use the tests of tempered and laminated glass to test the safety of indoor or outdoor stainless steel glass. It turns out that he is reliable.|
C , 52 * 52 * 32mm stainless steel glass clamps satin can hold up to 12.76mm glass, which can be used for glass railings of balconies, stairs, swimming pool fences as required.
|D , According to different requirements, SS304(V2A) ones could be installed indoor, and SS316(V4A) ones could be used outdoor, which with better rust protection and non-corrosion. SS316L ones can also be suppllied if much better performance is required.|
Simple DIY installation stainless steel glass clamps Specifications.
|Glass thickness||6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm|
|Material||SS304 / SS316 /SS316L /DUPLEX 2205|
|Surface||satin(brushed 320) /mirror|
|Production time||35-45days according to quantities|
|Packing||Plastic bag/pc, 4pcs in a box, 10boxes in a carton|
|Payment term||T/T30% as deposit, 70% payed according to documents copy.|
|ODM & OEM||YES|
|Delivery term||FOB, CIF, CFR, DDU, DAP|
Indoor or outdoor stainless steel glass clamp structure
1. Choose from flat back clip or curved back clip (suitable for 48mm tube)
2. Satin polishing (brushed surface treatment) stainless steel grade 316
3. Indoor or outdoor stainless steel glass clamps are equipped with 10mm glass rubber as standard.
4, 6mm to 12.76mm stainless steel glass clamps are generally suitable for indoor or outdoor
5,Our indoor or outdoor stainless steel glass clamp can fix the tempered glass panel without drilling holes in it, although if the height of the glass exceeds the height of the head, we recommend using the included safety pin with 14mm holes To ensure safety.
The D Shaped Glass Clamp consists of:
1 x Secure Pin
2 x Rubber Gaskets
2 x glass side plate securing screws / Mounting shape:
|AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00|
|AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00|
|AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00|
You are welcome to buy 52 * 52 * 32mm Stainless Steel Glass Clamps!
Contact Person: Cora
