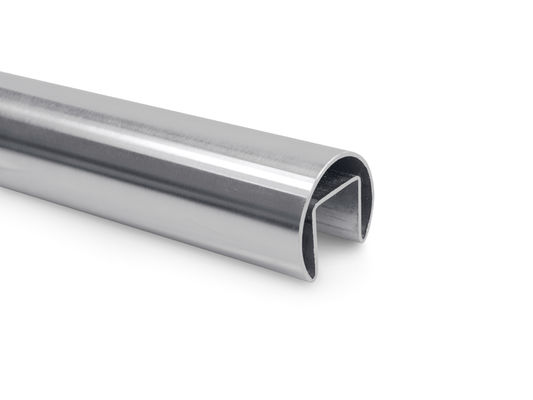

Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available

Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available

    • Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available
    • Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available
  • Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Compass
    Certification: ISO 9001, SGS
    Model Number: 706

    Payment & Shipping Terms:

    Minimum Order Quantity: 100meters
    Price: Negotiable
    Packaging Details: Skin packing per piece, with pallet outside
    Delivery Time: 30-40days according to quantity
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 10000meters per month
    Contact Now
    Detailed Product Description
    Name: Stainless Steel Welded Channel U Pipe DIA.: 42.4mm, 48.3mm, 50.8mm
    Slot Size: 24*24mm, 27*30mm, 20*20mm Thickness: 1.5mm
    Material: SS304(V2A) / SS316(V4A) /SS316L Application: Top Handrail For Glass Balustrade

    Stainless Steel Welded Channel U Pipe Working for Balcony Glass Designs



    Available dimensions.



    Item NO. Outer DIA.(mm) Thickness(mm) Slot size(mm) Weight per M
    706.424 42.4 1.5 24*24

    1.97KG

    706.483 48.3 1.5 27*30 2.37KG
    706.508.15 50.8 1.5 15*15 2.09KG
    706.508.20 50.8 1.5 20*20 2.25KG



    Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available



    Application.



    This Stainless Steel Welded Channel U Pipe Working for Balcony Glass Designs is specially designed to be as the top handrail of the glass railings, the rubbers inside can work with glass from 6mm to 21mm according to needs, this series is widely used in balustrade for balcony, staircase, stairs, pool fencing in commercial and residential buildings.



    Featured advantages

    1. Available dimensions.

        42.4mm*1.5mm, slot size : 24*24mm

        48.3mm*1.5mm, slot size : 27*30mm

        50.8mm*1.5mm, slot size : 15*15mm or 20*20mm

    2. Material : AISI304, AISI316, AISI316L

    3. Surface treatment : Brushed (satin), Polished ( mirro).

    4. Length: 3meters, 5meters, 6meters per piece or according to needs.

    5. Lead time: 20days.

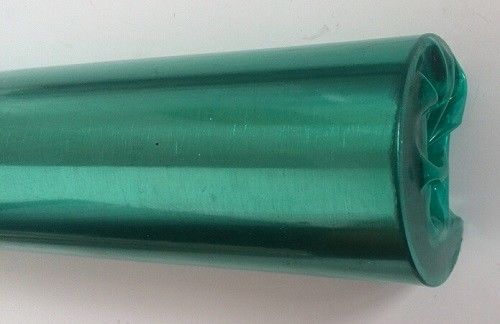

    6. Packing: Sking packing per piece, steel case outside.



    Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available



    Material Standard(%)



    AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

    AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

    AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00 .



    General terms.



    - Lead time: 25days according to order quantities.

    - Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.

    - Departure port: Qingdao or other ports according to needs.

    - Delivery term : by sea, by air, by Express



    Destination service.

    DDU or DAP service could be supplied if needed. That means goods could be delivered to your address directly.



    Specifications.


    Available diameter 42.4mm, 48.3mm, 50.8mm or according to needs
    Slot size 24*24mm, 27*30mm, 15*15mm, 20*20mm
    Thickness 1.5mm
    Length  3meters, 5meters, 6meters per piece
    Surface satin(brushed 320) /mirror(polished)
    Material  SS304(V2A), SS316(V4A)
    Free samples YES
    Production time about 20days according to quantities
    Packing Skin packing per piece, with pallet outside
    Payment term T/T, Paypal, Western Union
    Destination service Available
    ODM & OEM YES





    Stainless Steel Welded U Channel Pipe Brushed / Polished Type Available
