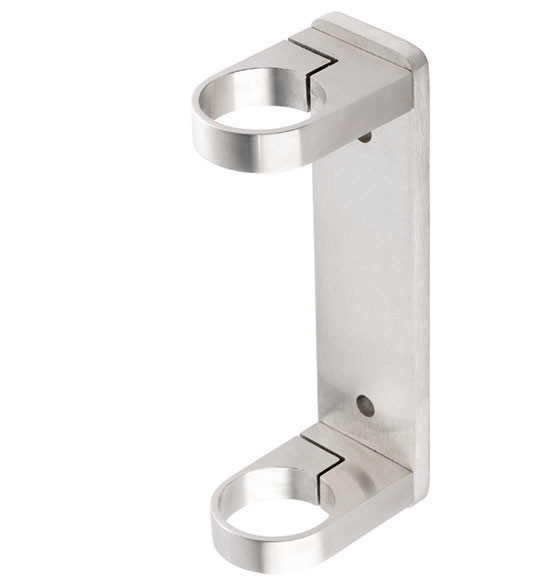

Customizable Stainless Steel Railing Components / Side Mount Bracket

Customizable Stainless Steel Railing Components / Side Mount Bracket

    • Customizable Stainless Steel Railing Components / Side Mount Bracket
  • Customizable Stainless Steel Railing Components / Side Mount Bracket

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Compass
    Certification: ISO 9001, SGS
    Model Number: 626

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Bag + Box + Carton + Pallet
    Delivery Time: 30-45days according to quantity
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Wall Bracket Plate: 300*70*10mm
    Pipe DIA.: 33.7mm, 42.4mm, 48.3mm Application: Side Mounted Bracket
    Surface: Brushed, Polished Packing: Bag + Inner Box + Carton + Pallet
    High Light:

    stainless steel rail fittings

    ,

    stainless steel balustrade fittings

    Wall Bracket for Stainless Steel Railing with Glass Designs for Balcony



    Our Railing systems allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.



    Customizable Stainless Steel Railing Components / Side Mount Bracket 0

    Dimensions.



    Product NO. φtube(mm) Base(mm) Height
    626.337 33.7 300*70*10 45
    626.424 42.4 300*70*10 45
    626.483 48.3 300*70*10 45



    General terms.



    1. Material is in SS304 (V2A) or SS316 (V4A).

    2. Surface could be brushed(satin) or polished(mirror) according to requirements.

    3. Available tube diameter is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.

    4. Working with 1.5mm or 2.0mm pipes.

    5. Customized dimensions are welcomed too.

    6. Lead time : 35-45days according to order quantity.

    7. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.

    8. Delivery term : FOB, CIF, CFR, DDU, DAP.

    9. Departure port: Qingdao or according to needs.

    10. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.



    Material Standard(%)



    AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

    AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

    AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00



    Pre-Sales Service

    Inquiry and consulting support.

    Sample testing support.

    Drawings and design supplied.

    Visiting our factory.



    After-Sales Service

    8hours * 6days online service.

    Timely updating on production status.

    Fast respond on quality complain within 24 hours.
