Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener

Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener

    • Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener
    • Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener
  • Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Compass
    Certification: ISO 9001, SGS
    Model Number: 542

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Bag + Box + Carton + Pallet
    Delivery Time: 30-40days according to quantity
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Product: Wall Mount With Concealed Fastener Support Bar: 14mm
    Plate: 60mm, M6 Height: 75mm Or Customized
    Top Saddle: Flat Or Round For 33.7-50.8mm Tubes Application: Wall Mounted Handrail Support
    High Light:

    stainless steel rail fittings

    ,

    stainless steel handrail fittings

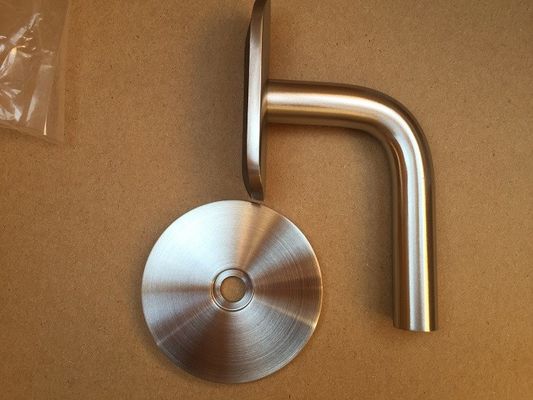

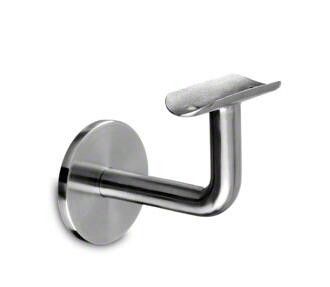

    Stainless Steel Banister Handrail Bracket, Wall Mount with Concealed Fastener



    This Stainless Steel Banister Handrail Bracket, Wall Mount with Concealed Fastener is widely used as pipe support in stainless steel handrails for balcony, staircases, fence, deck railings according to different environment, no matter interior or exterior installation with material AISI304 or AISI316. Customized dimensions are welcomed too.



    Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener



    Sizes.



    Item NO. Saddle Base plate Rod Height Material
    542.000 flat 60mm 14mm 75mm V2A, V4A
    542.337 33.7mm 60mm 14mm 75mm V2A, V4A
    542.381 38.1mm 60mm 14mm 75mm V2A, V4A
    542.424 42.4mm 60mm 14mm 75mm V2A, V4A
    542.483 48.3mm 60mm 14mm 75mm V2A, V4A
    542.508 50.8mm 60mm 14mm 75mm V2A, V4A



    Features.



    The top saddle could be flat for square pipes, or round for 33.7, 38.1, 42.4, 48.3, 50.8mm tubes. Base plate is 60*5mm, and the rod is in 14mm(70*50), the bottom thread is M6 for screwed to the wall or wood. General material is SS304 indoor or SS316 outdoor. Surface could be brushed or polished according to needs.The production time needs 30-40days according to order quantity. General packing is bag + inner box + carton + pallet. Our payment term: T/T30% as deposit, 70% payed according to Bill of Lading. Customized dimensions are welcomed too.



    Stainless Steel Banister Handrail Bracket Wall Mounted With Concealed Fastener



    Material Standard(%).

    AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

    AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

    AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00



    Products available.

    - Stainless Steel Railing Systems
    - Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
    - Slot tube/ Channel tube system
    - Balustrade & Handrail Accessories
    - Malleable iron pipe key clamps
    - Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
    - Shower / bathroom fittings
    - Laminated tempered glass could be supplied if needed
