Satin / Mirror Stainless Steel Railing Components , 135 Degree Corner Saddle

Satin / Mirror Stainless Steel Railing Components , 135 Degree Corner Saddle

    • Satin / Mirror Stainless Steel Railing Components , 135 Degree Corner Saddle
  • Satin / Mirror Stainless Steel Railing Components , 135 Degree Corner Saddle

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Compss
    Certification: ISO 9001, SGS
    Model Number: 582

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Bag + Box + Carton + Pallet
    Delivery Time: 30-40days according to quantity
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Name: 135 Degree Corner Handrail Saddle Material: SS304, SS316, SS316L
    Surface: Satin(brushed), Mirror(polished) Sizes: Flat Or For 33.7-50.8mm Tubes
    Shape: 135 Degree Application: Handrail Corner Support
    High Light:

    stainless steel rail fittings

    ,

    stainless steel balustrade fittings

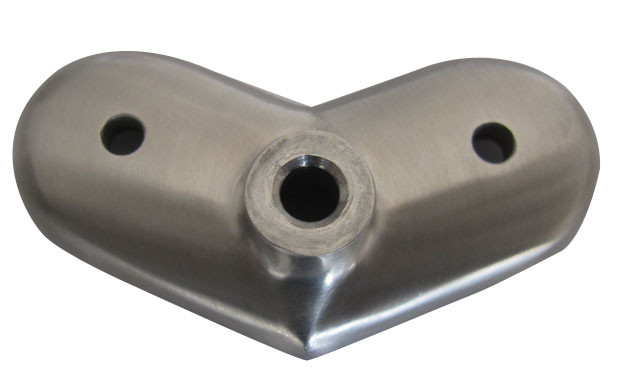

    Stainless Steel Tube Railing Handrails, 135 Degree Corner Handrail Saddle





    Item NO. Dimension Size Material Finish
    582.000 31*31*4mm flat V2A, V4A Brushed, polished
    582.337 31*31*4mm for 33.7mm tube V2A, V4A Brushed, polished
    582.381 31*31*4mm for 38.1mm tube V2A, V4A Brushed, polished
    582.424 31*31*4mm for 42.4mm tube V2A, V4A Brushed, polished
    582.483 31*31*4mm for 48.3mm tube V2A, V4A Brushed, polished
    582.508 31*31*4mm for 50.8mm tube V2A, V4A Brushed, polished



    General information.



    The series are used as top plate for handrail brackets or supports working for Inox stainless steel balustrades,steel and glass balustrades and stainless steel stair handrail. It's 135 degree corner design. They can be flat for square tubes, or in round shape for 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm pipes according to needs. Both AISI304 and AISI316 material are available. The surface coudl be satin or mirror polished according to requirements. Production time needs 30-40days according to final order quantities. Payment term needs T/T30% as deposit, 70% payed according to Bill of Lading.



    Satin / Mirror Stainless Steel Railing Components , 135 Degree Corner Saddle 0



    Material Standard(%)

    AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

    AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

    AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00



    Care of Stainless Steel.



    - Use pater or other protective wrapping one the surface of the stainless steel until processing is complete.

    - Handle stainless steel with clean gloves or cloths to guard against stains or finger marks.

    - Avoid the use of oily rags or greasy cloths when wiping the surface

    - If possible, rinse with water after cleaning.



    Compass Quality.


    In house testing facilities and innovated process to assure the quality
    - CNC centers
    - Coordinate Measurement Machine (CMM)
    - Spectrograph ( Make sure material are respecting the standards)
    - Salt Spray Test

    - 4 inspection.(material inspection, semi-finished inspection, inspection before packing, warehouse-out inspection)



    Satin / Mirror Stainless Steel Railing Components , 135 Degree Corner Saddle 1
