|Place of Origin:||Qingdao, China|
|Certification:||ISO 9001, SGS|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Bag + Box + Carton + Pallet|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||Wall Mounted Pipe Support||Bar:||14mm / 25mm|
|Height:||30-80mm Adjutable||Usage:||Wall Mounted Handrail Support|
|Base:||50mm||Packing:||Bag + Inner Box + Carton + Pallet|
stainless steel rail fittings,
stainless steel balustrade fittings

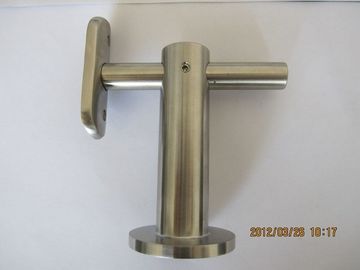

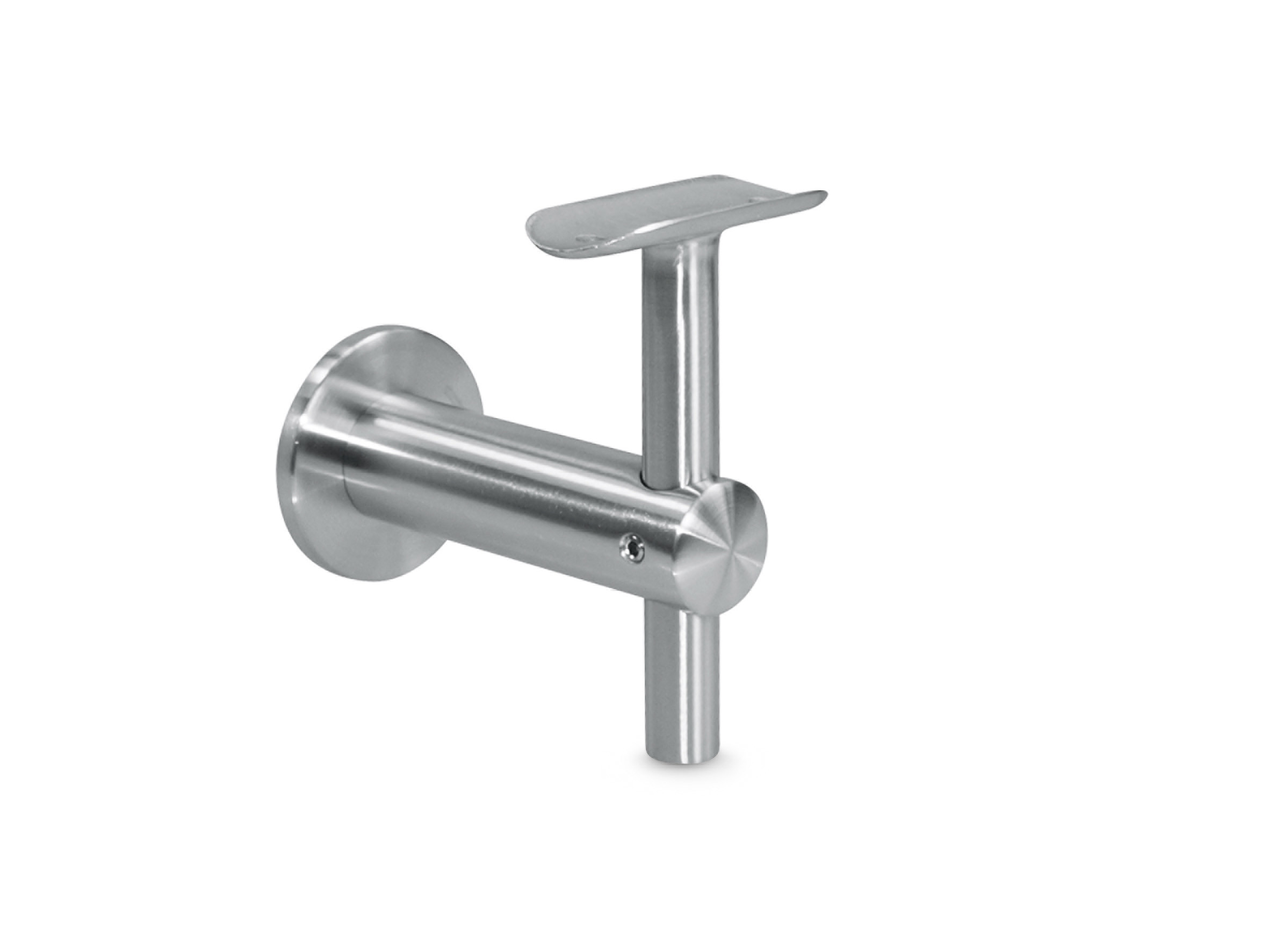

Wall Mounted Pipe Support for Stainless Steel Stair Railings
|Item NO.||Top saddle||Base||Rod||Height|
|537.000||flat||50mm||14mm/ 25mm||30 - 80|
|537.337||33.7mm||50mm||14mm/ 25mm||30 - 80|
|537.381||38.1mm||50mm||14mm/ 25mm||30 - 80|
|537.424||42.4mm||50mm||14mm/ 25mm||30 - 80|
|537.483||48.3mm||50mm||14mm/ 25mm||30 - 80|
|537.508||50.8mm||50mm||14mm/ 25mm||30 - 80|
In house testing facilities and innovated process to assure the quality
- CNC centers
- Coordinate Measurement Machine (CMM)
- Spectrograph ( Make sure material are respecting the standards)
- Salt Spray Test
- 4 inspection.(material inspection, semi-finished inspection, inspection before packing, warehouse-out inspection)
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.
316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.
316L is the low carbon version of 316.
1. Material is in SS304 (V2A) or SS316 (V4A).
2. Surface could be brushed(satin) or polished(mirror) according to requirements.
3. Available top saddle is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.
4. The base is in 50mm or customized
5. Lead time : 35-45days according to order quantity.
6. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.
7. Delivery term : FOB, CIF, CFR, DDU, DAP.
8. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
