|Place of Origin:||Qingdao, China|
|Certification:||ISO 9001, SGS|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Bag + Box + Carton + Pallet|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||Wall Mounted Adjustable Elbow Flange||Type:||Side Mounted|
|Outer DIA.:||33.7, 38.1, 42.4, 48.3, 50.8mm||Material:||AISI304, AISI316|
|Shape:||Adjustable Round Shape||Application:||Balcony, Terrace, Stair, Staircase|
stainless steel rail fittings,
stainless steel balustrade fittings

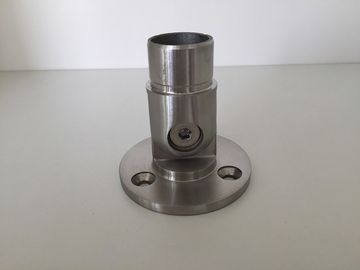

Stainless Steel Stair Handrail Polished Wall Mounted Adjustable Elbow Flange
This Stainless Steel Stair Handrail Polished Wall Mounted Adjustable Elbow Flange is available for 180 degree adjustable according to different application, is widely uesed as handrail connector for stainless steel glass balcony and stainless steel outdoor stair railings, stainless steel tubular handrail systems and glass balustrade stainless steel handrails.
|Item NO.||Outer DIA||Tube thickness||Material||Surface|
|312.337||33.7mm||1.5mm, 2mm or customized||AISI304, AISI316||Brushed, Polished|
|312.381||38.1mm||1.5mm, 2mm or customized||AISI304, AISI316||Brushed, Polished|
|312.424||42.4mm||1.5mm, 2mm or customized||AISI304, AISI316||Brushed, Polished|
|312.483||48.3mm||1.5mm, 2mm or customized||AISI304, AISI316||Brushed, Polished|
|312.508||50.8mm||1.5mm, 2mm or customized||AISI304, AISI316||Brushed, Polished|
In house testing facilities and innovated process to assure the quality
- CNC centers
- Coordinate Measurement Machine (CMM)
- Spectrograph ( Make sure material are respecting the standards)
- Salt Spray Test
- 4 inspection.(material inspection, semi-finished inspection, inspection before packing, warehouse-out inspection)
304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.
316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.
316L isthe low carbon version of 316.
Inquiry and consulting support.
Sample testing support.
Drawings and design supplied.
Visiting our factory.
8hours * 6days online service.
Timely updating on production status.
Fast respond on quality complain within 24 hours.
Contact Person: Cora
