|Place of Origin:||Qingdao, China|
|Certification:||ISO 9001, SGS|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Bag + Box + Carton + Pallet|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Product:||Flexible Pipe Support||Type:||Pipe Support|
|Saddle:||Flat Or Round For 33.7, 38.1, 42.4, 48.3, 50.8mm||Material:||SUS304, SUS316|
|Packing:||Bag + Inner Box + Carton + Pallet||Application:||Handrail Pipe Support|
stainless steel rail fittings,
stainless steel balustrade fittings

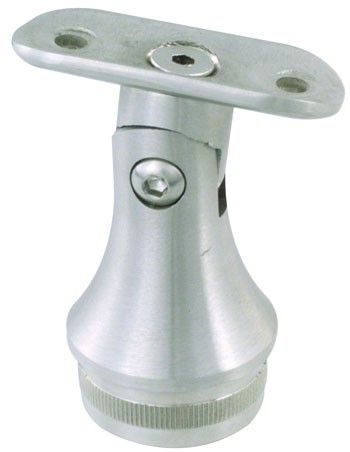

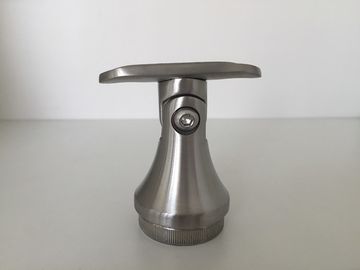

Stainless Steel Balcony Railing Designs with 42.4mm Flexible Pipe Support
|Item NO.||Top saddle||Bottom Dia||Finish||Material|
|512.000||flat||According to needs||Satin, mirror||AISI304, AISI316|
|512.337||33.7mm||33.7mm||Satin, mirror||AISI304, AISI316|
|512.381||38.1mm||38.1mm||Satin, mirror||AISI304, AISI316|
|512.424||42.4mm||42.4mm||Satin, mirror||AISI304, AISI316|
|512.483||48.3mm||48.3mm||Satin, mirror||AISI304, AISI316|
|512.508||50.8mm||50.8mm||Satin, mirror||AISI304, AISI316|
1. Available outer diameter is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.
2. Surface could be brushed(satin) or polished(mirror) according to requirements.
3. Material is in SS304 (V2A) or SS316 (V4A).
4. Working with 1.5mm or 2.0mm pipes.
5. Customized dimensions are welcomed too.
6. Lead time : 35-45days according to order quantity.
7. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.
8. Delivery term : FOB, CIF, CFR, DDU, DAP.
9. Departure port: Qingdao or according to needs.
10. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
In house testing facilities and innovated process to assure the quality
- CNC centers
- Coordinate Measurement Machine (CMM)
- Spectrograph ( Make sure material are respecting the standards)
- Salt Spray Test
- 4 inspection.(material inspection, semi-finished inspection, inspection before packing, warehouse-out inspection)
Our system installs on site with no welding required – simply glue, drill and tap the pieces into place. Available in type AISI304 and AISI316 for either interior or exterior installation.
