|Place of Origin:||Qingdao, China|
|Certification:||ISO 9001, SGS|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Bag + Box + Carton + Pallet|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Product:||Side Mounted Top Handrail Bracket||Rod:||12mm, 14mm|
|Base:||70*4mm, 70*5mm, 70*6mm||Height:||75mm Or Customized|
|Top Saddle:||Flat Or Round For 33.7-50.8mm Tubes||Type:||Fixed Top Support For Handrails|
stainless steel rail fittings,
stainless steel handrail fittings

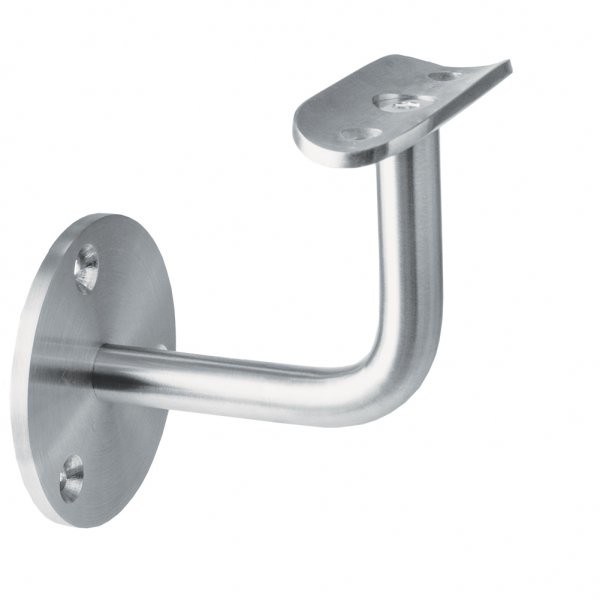

Stainless Steel Outdoor Handrails with Side Mounted Top Handrail Bracket
This Stainless Steel Outdoor Handrails with Side Mounted Top Handrail Bracket is widely used as pipe support in stainless steel handrails for balcony, staircases, fence, deck railings according to different environment, no matter interior or exterior installation with material AISI304 or AISI316.
|Item NO.||Saddle||Base plate||Thickness of Base||Height||Rod|
|541.000||flat||70mm||6mm or customize||75mm||12mm|
|541.337||33.7mm||70mm||6mm or customized||75mm||12mm|
|541.381||38.1mm||70mm||6mm or customized||75mm||12mm|
|541.424||42.4mm||70mm||6mm or customized||75mm||12mm|
|541.483||48.3mm||70mm||6mm or customized||75mm||12mm|
|541.508||50.8mm||70mm||6mm or customized||75mm||12mm|
1. The top saddle could be flat for square pipe, or round for 33.7, 38.1, 42.4, 48.3, 50.8mm tubes.
2. Base plate could be 70*4mm, 70*5mm, 70*6mm or customized according to needs.
3. Height is 75mm or customized.
4. The head of the rod is flat for welding or M6 screwed to the top handrails.
5. The diameter of rod could be 12mm or 14mm.
7. Material is SS304 indoor or SS316 outdoor.
8. Surface could be brushed or polished according to needs.
9. Production time needs 30-40days according to order quantity.
10. Packing: bag + inner box + carton + pallet.
11. Deliver term : FOB, CIF, CFR, DDU, DDP.
12. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
13. Departure port: Qingdao or according to needs.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed
Contact Person: Cora
