|Place of Origin:||Qingdao, China|
|Certification:||ISO 9001, SGS|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Bag + Box + Carton + Pallet|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||Adjustable Wall Mount Bracket||Height:||30-80mm Adjutable|
|Material:||V2A, V4A||Finish:||Brushed, Polished|
stainless steel handrail fittings,
stainless steel balustrade fittings

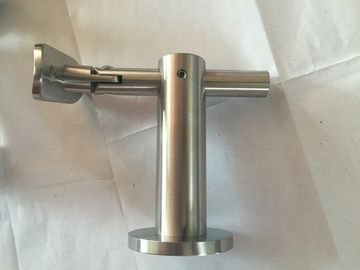

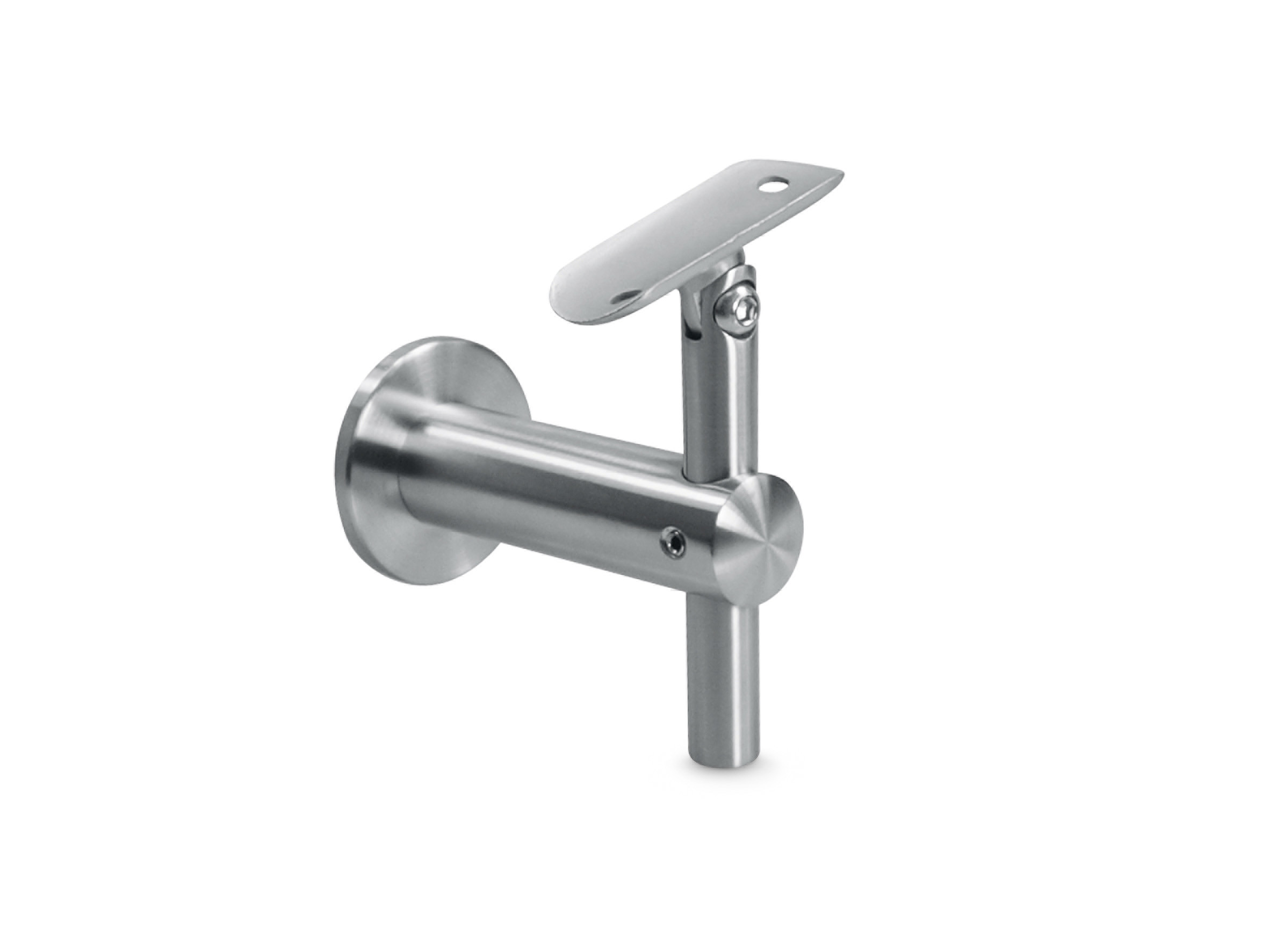

Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems
|Item NO.||Top saddle||Base||Rod||Height|
|538.000||flat||50mm||14mm/ 25mm||30 - 80|
|538.337||33.7mm||50mm||14mm/ 25mm||30 - 80|
|538.381||38.1mm||50mm||14mm/ 25mm||30 - 80|
|538.424||42.4mm||50mm||14mm/ 25mm||30 - 80|
|538.483||48.3mm||50mm||14mm/ 25mm||30 - 80|
|538.508||50.8mm||50mm||14mm/ 25mm||30 - 80|
This series can be used in both inetrior and outdoor, for residential and commercial buildings. The quality materials keep them corrosion resistance, anti-rust and eco-friendly in nature.
Compass Railing Service.
- Provide fast delivery and competitive price for bulk quantity orders.
- Provide swaging service for different assembly orders to help customers save time and money.( Compass could finish swaging job up to 12mm cable)
- Provide professional ideas on choosing suitable fittings for your projects
- Provide completed packaging of all items required in your projects(cable assembly, predrilled posts, handrail, post components and tools)
- Provide free samples service on customer new creative ideas.
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.
316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.
316L is the low carbon version of 316.
1. Material is in SS304 (V2A) or SS316 (V4A).
2. Surface could be brushed(satin) or polished(mirror) according to requirements.
3. Available top saddle is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.
4. The base is in 50mm or customized
5. Lead time : 35-45days according to order quantity.
6. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.
7. Delivery term : FOB, CIF, CFR, DDU, DAP.
8. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
