| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 302 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | V2A 90 Degree Tube Connector | Material: | V2A, V4A |
|---|---|---|---|
| Surface: | Brushed(satin), Polished(mirror) | Sizes: | 33.7, 38.1, 42.4, 48.3, 50.8mm |
| Tube Thickness: | 1.5mm, 2mm Or Customized | Free Sample: | Available |
| High Light: | stainless steel handrail fittings,stainless steel balustrade fittings |
||

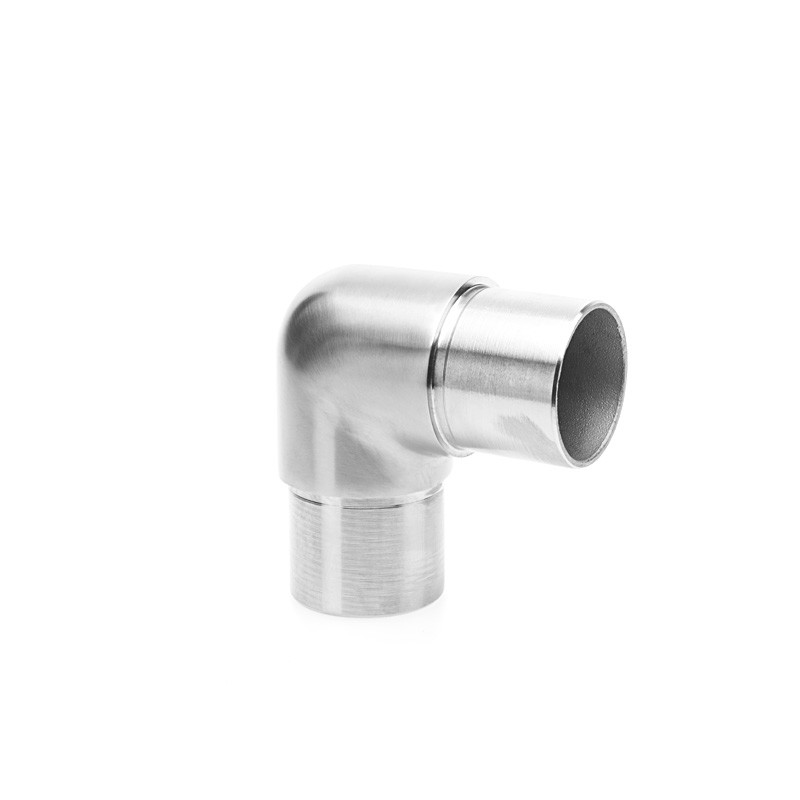

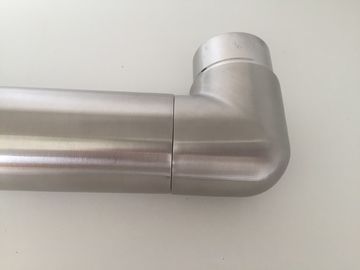

V2A 90 Degree Tube Connector Used in Stainless Steel Railing Balusters
Available dimensions.
| Item NO. | Outer DIA | Tube thickness | Material | Surface |
| 302.337 | 33.7mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 302.381 | 38.1mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 302.424 | 42.4mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 302.483 | 48.3mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
| 302.508 | 50.8mm | 1.5mm, 2mm or customized | AISI304, AISI316 | Brushed, Polished |
Pre-Sales Service.
Inquiry and consulting support.
Sample testing support.
Drawings and design supplied.
Visiting our factory.
After-Sales Service.
8hours * 6days online service.
Timely updating on production status.
Fast respond on quality complain within 24 hours.
Material
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
Care of Stainless Steel.
- Use pater or other protective wrapping one the surface of the stainless steel until processing is complete.
- Handle stainless steel with clean gloves or cloths to guard against stains or finger marks.
- Avoid the use of oily rags or greasy cloths when wiping the surface
- If possible, rinse with water after cleaning.
Features.
| Item | V2A 90 Degree Tube Connector for Stainless Steel Deck Railings |
| Material | AISI3041, AISI316 |
| Finish | Satin, Mirror |
| Diameter | 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm |
| Tube thickness | 1.5mm, 2mm or customized |
| Packing | 10pcs in a box, 4boxed in a carton, with pallet outside |
| Lead time | 35-45days |
| Type | 90° corner connector |
| Application | Pipe connector in corners |
| Free samples | Available |
| Delivery term | FOB, CIF, CFR, DDU, DAP |
