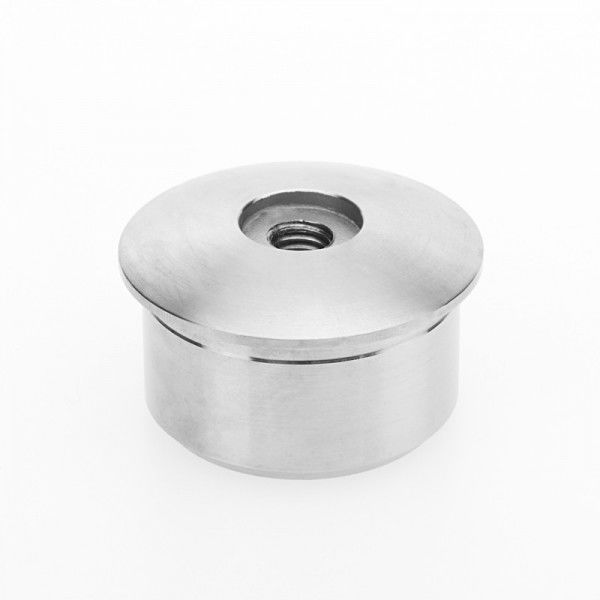

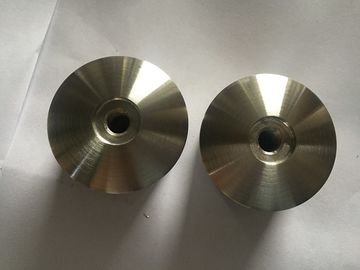

Stainless Steel Railing Top Cap M8 for Support Stair Handrails

Stainless Steel Railing Top Cap M8 for Support Stair Handrails

  • Stainless Steel Railing Top Cap M8 for Support Stair Handrails
  • Stainless Steel Railing Top Cap M8 for Support Stair Handrails
Stainless Steel Railing Top Cap M8 for Support Stair Handrails
Product Details:
Place of Origin: Qingdao, China
Brand Name: Compass
Certification: ISO 9001, SGS
Model Number: 207
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 10pcs in box, 10boxes in a carton, with pallet outside
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Name: Stainless Steel Railing Top Cap Material: AISI304, AISI316
Finish: Brushed, Polished Size: 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm
Thickness: 1.5mm, 2mm, 2.6mm Or Customized Lead Time: 35-45days
High Light:

stainless steel rail fittings

,

stainless steel balustrade fittings

Stainless Steel Railing Top Cap M8 for Support Stair Handrails​



Specifications.

Item NO. Outer DIA Thread Thickness Material
207.337.M8 33.7mm M8 1.5mm, 2mm, 2.6mm or custimized V2A, V4A
207.381.M8 38.1mm M8 1.5mm, 2mm, 2.6mm or custimized V2A, V4A
207.424.M8 42.4mm M8 1.5mm, 2mm, 2.6mm or custimized V2A, V4A
207.483.M8 48.3mm M8 1.5mm, 2mm, 2.6mm or custimized V2A, V4A
207.508.M8 50.8mm M8 1.5mm, 2mm, 2.6mm or custimized V2A, V4A



Compass are specialized in stainless steel balustrade and fittings. Complete series could be supplied here including stainless steel railing balusters, frameless glass balustrade, slot tube balustrads, cable railings, wooden handrails and other fittings as glass clamps, brackets, etc..



Keeping long-term cooperation with every partner is our principle, so steady quality in products and service, no-time delivery and professional after sale service are the most important factors we stick to.



Customized parts can also be manufactured according to needs.



Material.

AISI304 ( V2A ) and AISI316 ( V4A) are mostly manufactured according to needs. Of course, SS316L can be supplied according to higher requirements.



Material test is the first test of whole order. Each batch material must be checked to be qualified to make sure the first step of the quality control.

SS316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

SS304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00



Product  Stainless Steel Tubular Handrail System
Material Stainless steel 304# / 316#
Surface Finsih Brushed(satin), Polish(mirror)
Size Height:16mm, M8
Size: 33.7, 38.1, 42.4, 48.3, 50.8mm
Thickness:1.5mm, 2mm, 2.6mm or Customized
Application Handrials indoor or outdoor.
Package Bag + Inner box + Carton + Pallet
Installation 1.Just knock in, no welding, easy to install.
2.fasten and elegant appearance
Payment term T/T 30%-50% deposit, balance before delivery and shipment
Delivery time 25-45 Days after receiving deposit
Advantage 1.Professional:
Manufactured and exported railing series since 2010, with professional teams, steady quality in both products and service can be supplied always.
2.Price:
Competitive and reasonal price.
3.Material :
SS316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00                                                                SS304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
4. One-stop service
Professional sales team could reply you within 12 hours, delivery team could supply destination service to save you both time and energy. One-stop service can be suppleid here.
5.Steady and fast delivery time
With strickt controlling system according ISO9001, steady delivery time can be confirmed.
6.Low MOQ:
Welcome your trial orders to check our quality.
7.OEM & ODM
With professional technical team, new designs and customnized parts are welcomed.



Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.



General terms.

- Lead time: 30-50days according to order quantities.

- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.

- Departure port: Qingdao or other ports according to needs.

- Delivery term : by sea, by air, by Express
