| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 725 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Plywood case |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Slot Pipe Flange For Handrails | Diameter: | 42.4mm, 48.3mm, 50.8mm |
|---|---|---|---|
| Slot: | 24*24mm, 27*30mm, 15*15mm, 20*20mm | Material: | SS304(V2A) / SS316(V4A) /SS316L |
| Application: | Base Flagne To Fix Slot Pipe | Surface: | Satin, Mirror |
| High Light: | ss slotted pipe,stainless steel balustrade components |
||

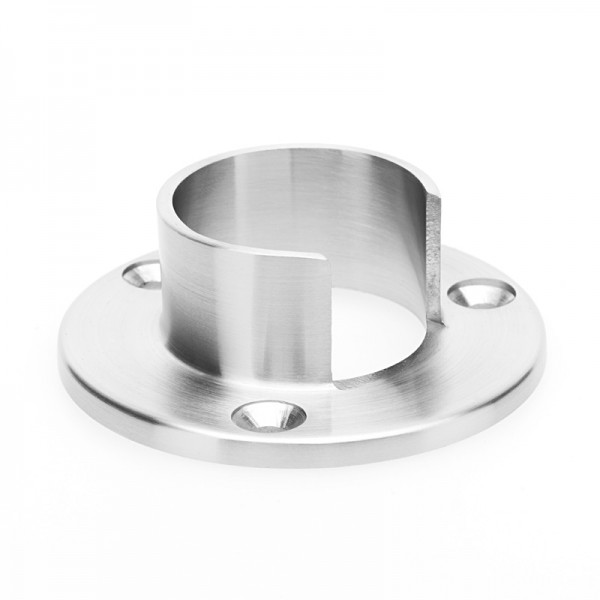

Stainless Steel Wall Base Flange, Slot Pipe Flange for Handrails
Application.
This Stainless Steel Wall Base Flange, Slot Pipe Flange for Handrails is specially designed to fix the channel tubes, can work both on the floor or wall, widely used in glass balustrade for balcony, staircase, stairs, pool fencing in commercial and residential buildings.
Featured advantages
1. Sizes :
42.4mm*1.5mm, slot size : 24*24mm
48.3mm*1.5mm, slot size : 27*30mm
50.8mm*1.5mm, slot size : 15*15mm or 20*20mm
2. Available material : AISI304, AISI316, AISI316L
3. Surface : Brushed (satin), Polished ( mirror).
4. Production time : 35-45days.
5. Packing: Bag + Box + Carton + Plywood case
6. Application : Holding the slot pipes for top handrails

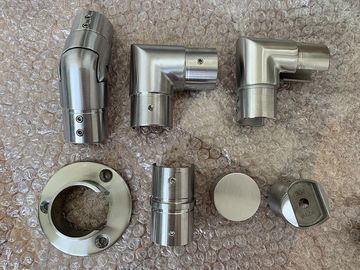

Compass are specialized in stainless steel balustrade and fittings. Complete series could be supplied here including stainless steel railing balusters, frameless glass balustrade, slot tube balustrads, cable railings, wooden handrails and other fittings as glass clamps, brackets, etc..
With European level quality, our customers and partners covers more than 30 countries from Europe, America, Latin America, Australia, Africa, and Southeast Asia.
Customized parts can also be manufactured according to drawings or samples.
Welcome to contact our sales team if you have any question, professional sales staff will reply you within 8 hours.
General terms:
- Lead time: about 20days according to order quantities.
- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.
- Departure port: Qingdao or other ports according to needs.
- Shipping term: FOB, CIF, DDU, DAP
Material.
AISI304 ( V2A ) and AISI316 ( V4A) are mostly manufactured according to needs. Of course, SS316L can be supplied according to higher requirements.
Material test is the first test of whole order. Each batch material must be checked to be qualified to make sure the first step of the quality control.
Specifications:
| Tube size | 42.4mm | 48.3mm | 50.8mm | 50.8mm |
| Tube thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Slot size | 24*24mm | 27*30mm | 15*15mm | 20*20mm |
| Glass thickness | 6mm - 21mm | 6mm - 21mm | 6m - 12mm | 6mm - 16mm |
