| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | 511 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bag + Box + Carton + Pallet |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Product Name: | Fixed Top Handrail Support | Top Saddle: | Flat Or Round For 33.7, 38.1, 42.4, 48.3, 50.8mm |
|---|---|---|---|
| Base DIA: | 33.7, 38.1, 42.4, 48.3, 50.8mm | Type: | Pipe Support |
| Packing: | Bag + Inner Box + Carton + Pallet | Application: | Hanrail Pipe Support |
| High Light: | stainless steel handrail fittings,stainless steel balustrade fittings |
||

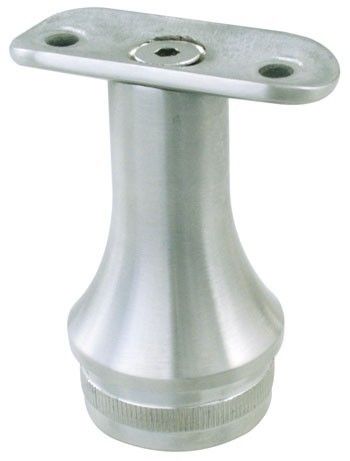

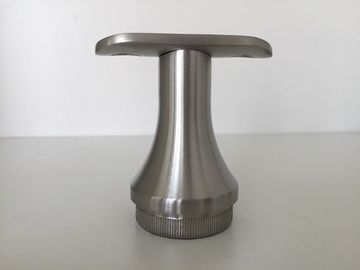

Fixed Top Handrail Support for Glass Balustrade Stainless Steel Handrails
Available dimensions.
| Item NO. | Top saddle | Bottom Dia | Finish | Material |
| 511.000 | flat | According to needs | Satin, mirror | AISI304, AISI316 |
| 511.337 | 33.7mm | 33.7mm | Satin, mirror | AISI304, AISI316 |
| 511.381 | 38.1mm | 38.1mm | Satin, mirror | AISI304, AISI316 |
| 511.424 | 42.4mm | 42.4mm | Satin, mirror | AISI304, AISI316 |
| 511.483 | 48.3mm | 48.3mm | Satin, mirror | AISI304, AISI316 |
| 511.508 | 50.8mm | 50.8mm | Satin, mirror | AISI304, AISI316 |
General terms.
1. Material is in SS304 (V2A) or SS316 (V4A).
2. Surface could be brushed(satin) or polished(mirror) according to requirements.
3. Available outer diameter is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.
4. Working with 1.5mm or 2.0mm pipes.
5. Customized dimensions are welcomed too.
6. Lead time : 35-45days according to order quantity.
7. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.
8. Delivery term : FOB, CIF, CFR, DDU, DAP.
9. Departure port: Qingdao or according to needs.
10. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.
Features.
Our system installs on site with no welding required – simply glue, drill and tap the pieces into place. Available in type AISI304 and AISI316 for either interior or exterior installation.
