|Place of Origin:||Qingdao, China|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Carton + plywood pallet|
|Delivery Time:||30-40days according to quantity|
|Payment Terms:||L/C, T/T, Western Union, D/A, D/P|
|Supply Ability:||10000pcs per month|
|Name:||30°-60°Adjustable Tee Connection||Type:||Adjustable Tee|
|Material:||Malleable Iron||Sizes:||A-E (26.9mm - 60.3mm)|
|Lead Time:||35days||Packing:||Carton + Pallet|
iron pipe fittings,
metal pipe joints

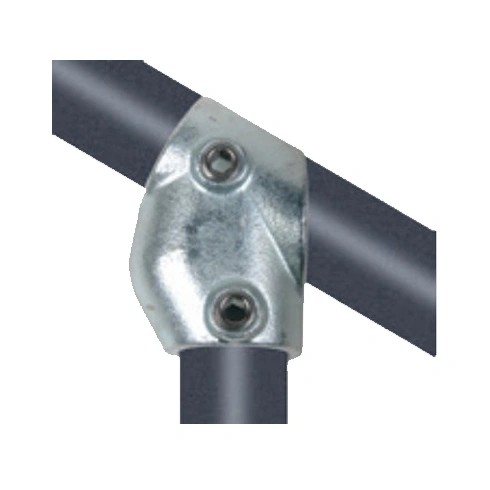

30°-60°Adjustable Tee Connection on Angled Top Rails for Stairs
Freely adjustable tee between 30° and 60°. Typical use is a tee connection on angled top rails on steeper slopes or stairs with the upright
remaining vertical. This fitting can also be used for bracing on structures.
Compass pipe clamps are designed by using malleable iron in accordance with ASTM A197 which applies for good mechanical strength and enough elongation characters. The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion, the surface can also be Black or Powder Coated according to needs.
1. Material is Malleable Iron by Standard ASTM A197.
2. Surface could be Hot Dip Galvanized, Electrogalvanizing, Black or Powder Coated according to needs.
3. Available dimensions is 26.9mm, 33.7mm, 42.4mm, 48.3mm, 60.3mm or 21.3mm pipes.
4. Size of packing carton: 340mm*260mm*240mm
5. Standard size of pallet (including 48 cartons) : 1130mm*1190mm*1070mm.
6. Lead time : 35-45days according to order quantity.
What can Compass do for you?
- Lead time: 30-50days according to order quantities.
- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.
- Departure port: Qingdao or other ports according to needs.
- Delivery term : by sea, by air, by Express
Compass are specialized in stainless steel balustrade and fittings. Complete series could be supplied here including stainless steel railing balusters, frameless glass balustrade, slot tube balustrads, cable railings, wooden handrails and other fittings as glass clamps, brackets, etc...
Keeping long-term cooperation with every partner is our principle, so steady quality in products and service, no-time delivery and professional after sale service are the most important factors we stick to.
Six different sizes are available as following.
|Pipe Clamp Size||Nominal Bore||Outside Diameter|
|Item NO.||Weight( KG/pc)||Surface||Carton sizes|
|C129-A||0.29||black, hot galvanizing, electrogalvanizing||340*260*240mm|
|C129-B||0.40||black, hot galvanizing, electrogalvanizing||340*260*240mm|
|C129-C||0.65||black, hot galvanizing, electrogalvanizing||340*260*240mm|
|C129-D||0.75||black, hot galvanizing, electrogalvanizing||340*260*240mm|
|Material||Malleable Iron by Standard ASTM A197|
|Surface||Hot galvanized, electrogalvanizing, power coated, black|
