| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001 |
| Model Number: | 104.5252 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | 4pcs in a box, 10boxes in a carton. |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Square Glass Clamp With 12mm Glass | Dimension: | 52*52*32mm |
|---|---|---|---|
| Glass Thickenss: | 6mm-12.76mm | Surface: | Satin(brushed) / Mirror(polished) |
| Material: | Stainless Steel | Type: | Stainless Steel Railing |
| High Light: | stainless steel glass clips,stainless steel glass brackets |
||

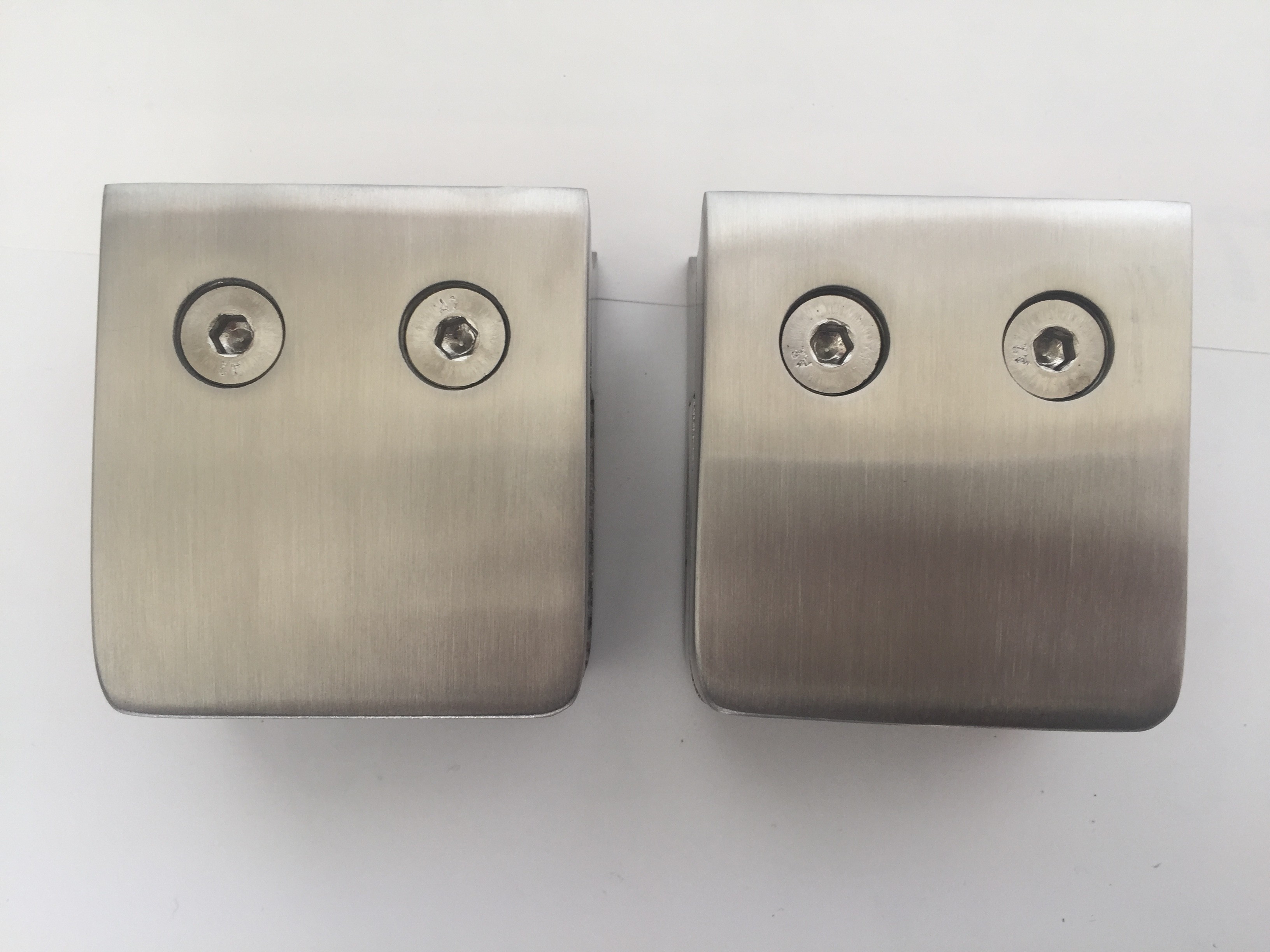

52*52*32mm Stainless Steel Glass Clips Satin Treatment (Matte)
|
A , Our glass calmps are very versatile part of the railing systems. Available in both flat and concave back, they can be used with either round or square balusters ot mount glass or other architectural panels.
|
| B , For our glass solutions, one thing is clear: safety first ? 52*52*32mm stainless steel glass clamps All glass clamps are certified to securely fix the glass panel. We also use the tests of tempered and laminated glass to test the safety of indoor or outdoor stainless steel glass. It turns out that he is reliable. |
|
C , 52 * 52 * 32mm stainless steel glass clips satin can hold up to 12.76mm glass, which can be used for glass railings of balconies, stairs, swimming pool fences as required.
|
| D , According to different requirements, SS304(V2A) ones could be installed indoor, and SS316(V4A) ones could be used outdoor, which with better rust protection and non-corrosion. SS316L ones can also be suppllied if much better performance is required. |
Specifications.
| Dimension | 52*52*32mm |
| Glass thickness | 6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm |
| Material | SS304 / SS316 /SS316L /DUPLEX 2205 |
| Surface | satin(brushed 320) /mirror |
| MOQ | 100pcs |
| Free samples | YES |
| Production time | 35-45days according to quantities |
| Packing | Plastic bag/pc, 4pcs in a box, 10boxes in a carton |
| Payment term | T/T30% as deposit, 70% payed according to documents copy. |
| Destination service | Available |
| ODM & OEM | YES |
| Delivery term | FOB, CIF, CFR, DDU, DAP |
Indoor or outdoor stainless steel glass clamp structure
| 1. Choose from flat back clip or curved back clip (suitable for 48mm tube) |
| 2. Satin polishing (brushed surface treatment) stainless steel grade 316 |
|
3. Indoor or outdoor stainless steel glass clips are equipped with 10mm glass rubber as standard. |
| 4, 6mm to 12.76mm stainless steel glass clamps are generally suitable for indoor or outdoor |
| 5. Please refer to PDF for the size of the glass clamp |
|
6. Our indoor or outdoor stainless steel glass clamp can fix the tempered glass panel without drilling holes in it, although if the height of the glass exceeds the height of the head, we recommend using the included safety pin with 14mm holes To ensure safety. |
Stainless steel glass clips available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
Material
| AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00 |
| AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00 |
| AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00 |
Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.
Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.
You are welcome to buy 52 * 52 * 32mm Stainless Steel Glass Clips!
