| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001 |
| Model Number: | 104.5252 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | 4pcs in a box, 10boxes in a carton. |
| Delivery Time: | 30-40days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Square Glass Clamp With 12mm Glass | Dimension: | 52*52*32mm |
|---|---|---|---|
| Glass Thickenss: | 8-12.76mm | Surface: | Satin(brushed) / Mirror(polished) |
| Packing: | 4pcs In A Box, 10boxes In A Carton, With Pallet Outside | Lead Time: | 35-45days |
| High Light: | SS304 Glass Clamps,12mm Stainless Steel Glass Clamps,Satin Stainless Steel Glass Clamps |
||

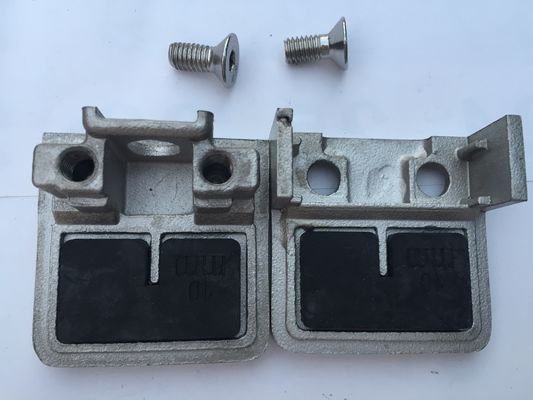

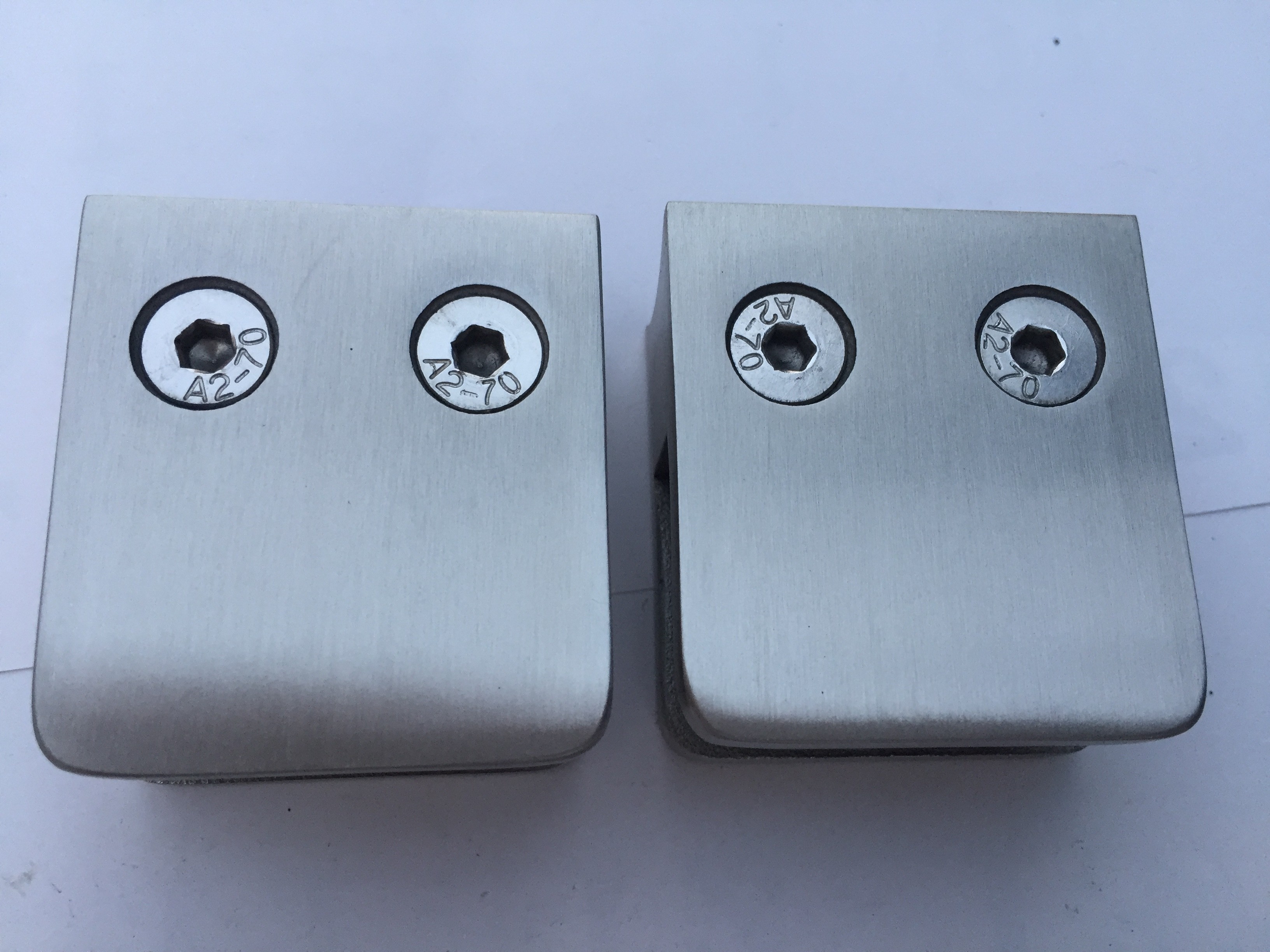

Chrome-Plated 8-12mm Stainless Steel Glass Clamp
Specifications.
| Dimension | 52*52*32mm |
| Glass thickness | 6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm |
| Material | SS304 / SS316 /SS316L /DUPLEX 2205 |
| Surface | satin(brushed 320) /mirror |
| MOQ | 100pcs |
| Free samples | YES |
| Production time | 35-45days according to quantities |
| Packing | Plastic bag/pc, 4pcs in a box, 10boxes in a carton |
| Payment term | T/T30% as deposit, 70% payed according to documents copy. |
| Destination service | Available |
| ODM & OEM | YES |
| Delivery term | FOB, CIF, CFR, DDU, DAP |
Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.
Material
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use.
Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools.
