| Place of Origin: | Qingdao, China |
| Brand Name: | Compass |
| Certification: | ISO 9001, SGS |
| Model Number: | P101 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | bag + box + polywood case |
| Delivery Time: | 30-45days according to quantity |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 10000pcs per month |
| Name: | Stainless Steel Baluster Glass Railing System | Material: | SS304(V2A) / SS316(V4A) /SS316L |
|---|---|---|---|
| Glass Thickness: | 6mm-12.76mm | Glass Clamp: | D Shape, Square Shape |
| Height: | 900mm -1200mm | Type: | Corner / End / Mid |
| Feature: | Corrosion Resistance | Length: | Can Be Customized |
| Usage: | Protection | Aperture: | 20mm |
| High Light: | 6mm Stainless Steel Balustrade Posts,SS304 Stainless Steel Balustrade Posts,Railing Stainless Balustrade Posts |
||

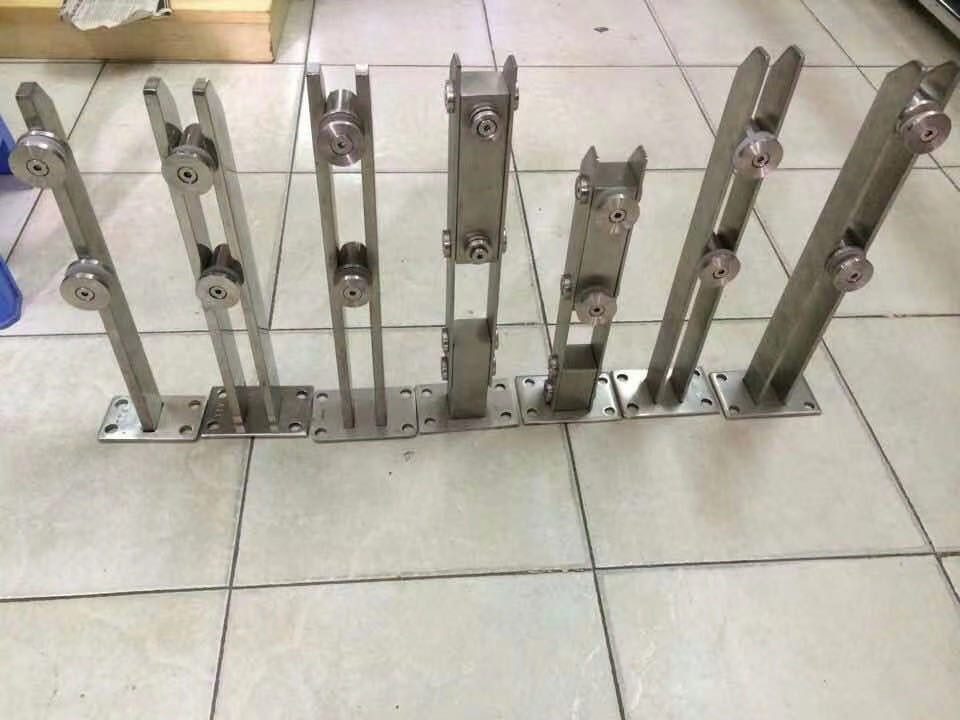

6mm-12.76mm Corrosion-Resistant Stainless Steel Railing Post
What is a stainless steel railing system?
The stainless steel railing system describes stainless steel railings with fillers and uprights. Compass stainless steel railing is a stainless steel cable railing system designed and manufactured by a famous brand, which has good aesthetics and practicality.
Stainless Steel Railing Balusters Features
1. The stainless steel wire guardrail can hide the parts in the column with the help of special fasteners. The guardrail is a beautiful and very safe choice. Stainless steel rods are very suitable for our steel stairs.
2. Each stainless steel wire fence is made of SS304 / SS316 / SS316L / DUPLEX 2205 stainless steel, which can withstand even the harshest coastal environment.
3. The style of the poles can be selected, they are also stronger and more durable than the steel wire railing system. The straight and thin profile of the rod means that the system is very easy to clean and maintain.
4. The railing fully meets the requirements of the specification. Each system must be constructed in accordance with railing specifications, and international, local, city, and state specifications specify the requirements for each specific project.
| Product | Stainless Steel Baluster Glass Railing System for Terrace/Commercial Building |
| Diameter | 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm |
| Thickness | 1mm, 1.5mm, 2mm, 2.6mm or according to requirements |
| Height | 900-1200mm according to needs |
| Support | Flat or round for 33.7mm-50.8mm tube |
| Type | Mid / corner / end types |
| Material | SS304 / SS316 /SS316L |
| Surface | satin(brushed 320) / mirror |
| MOQ | 50pcs |
| Glass thickness | 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm |
| Production time | 35-45days according to quantities |
| Packing | Bag + box + pallet |
SS304(V2A) / SS316(V4A) /SS316Lstainless steel balustrade posts Application
|
Used in both residential and commercial applidations, Stainless Steel Baluster Glass Railing System for Terrace/Commercial Building allow you to showcase the view, rather than hide it. |
|
Our stainless steel balustrade postssystem installs on site with no welding required – simply glue, drill and tap the pieces into place. Available in type AISI304 and AISI316 for either interior or exterior installation. |
| 900mm -1200mm height stainless steel balustrade posts System is designed for both indoor and outdoor uses, easily accommodated either glass or rod infill. From office buildings to apartment complexes, balconies to separations, no welding required. |
Material
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| AISI304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.-10.0 | 18.0-20.0 | |
| AISI316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| AISI316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
|
Grade 304 is the most common stainless steel, and can satisfy various demand for adequate performance at an affordable price. It has good corrosion resistance in ad wide variery of enrironments, is a best choice for indoor use. |
| Grade 316 has a higher level of corrosion resistance. The grade 316 is often referred to as Marine Grade. Typical applications are architectural compontnets where they are exposed to extreme weather and climatic conditions, such as near to the coast, industial sites or around swimming pools. |
|
900mm -1200mm height stainless steel balustrade posts for Terrace/Commercial Building allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel. |
