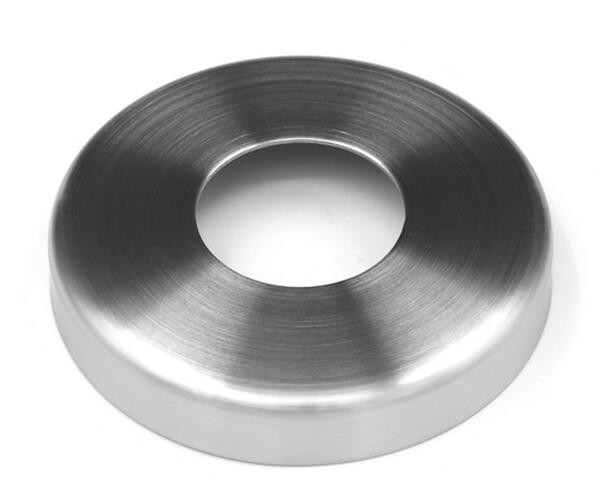

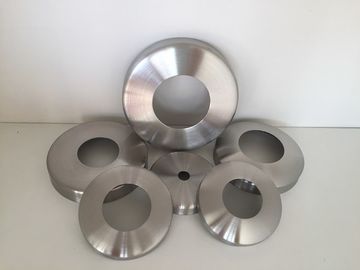

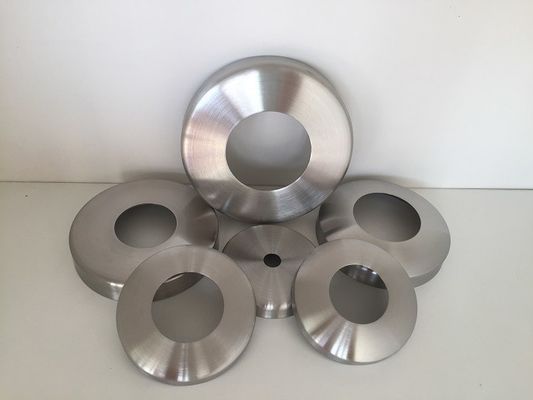

Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade

Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade

    • Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade
    • Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade
  • Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Compass
    Certification: ISO 9001, SGS
    Model Number: 610

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: Negotiable
    Packaging Details: Bag + Box + Carton + Pallet
    Delivery Time: 30-40days according to quantity
    Payment Terms: L/C, T/T, Western Union, D/A, D/P
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Name: Baluster Base Cover Plate DIA.: 45mm-125mm
    Available Sizes: 12.5mm-50.8mm Height: 13mm-27mm
    Thickness: 0.8mm, 1mm, 1.5mm Material: Stainless Steel
    High Light:

    stainless steel rail fittings

    ,

    stainless steel handrail fittings

    Baluster Base Cover Plate for Glass Balustrade Stainless Steel Handrails





    Available dimensions.



    Outer DIA(mm) φtube(mm) Height(mm) Thickness
    45 10/12/14 13 1
    60 10/12/14 13 0.8
    65 10/12/14 13 1
    70 10/12/14 13 1
    85 33.7/38.1/42.4 15 1
    85 33.7/38.1/42.4 20.5 1
    90 33.7/38.1/42.4 13 0.8
    105 33.7/38.1/42.4/48.3/50.8 18 1.5
    105 33.7/38.1/42.4/48.3/50.8 20 1
    105 33.7/38.1/42.4/48.3/50.8 22 1.5
    105 33.7/38.1/42.4/48.3/50.8 25 1.5
    125 33.7/38.1/42.4/48.3/50.8 18 1.5
    125 33.7/38.1/42.4/48.3/50.8 22 1.5
    125 33.7/38.1/42.4/48.3/50.8 25 1.5
    110 33.7/38.1/42.4/48.3/50.8 18 1.5
    110 33.7/38.1/42.4/48.3/50.8 27 1.5
    120 33.7/38.1/42.4/48.3/50.8 27 1.5



    Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade 0

    Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade 1



    Advantages of Compass.



    1. One-stop supplier

        With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.



    2. Standard materials is as following

        AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0

        AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

        AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00



    3. Destination service.

        DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.



    4. Steady and fast delivery time

        With strickt controlling system according ISO9001, steady delivery time can be confirmed.

       Casting ones need 35-40days.

        Machining ones need 20-35days.

       Tubes and rubbers need 20days



    5. Low MOQ.

        As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.



    6. OEM & ODM

        With professional technical team, new designs and customnized parts are welcomed.



    7. Free samples are available for checking.



    Products available.


    With kinds of product lines, Compass could be your one-stop supplier.
    - Stainless Steel Railing Systems
    - Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
    - Slot tube/ Channel tube system
    - Balustrade & Handrail Accessories
    - Malleable iron pipe key clamps
    - Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
    - Shower / bathroom fittings
    - Laminated tempered glass could be supplied if needed.



    General terms.



    - Lead time: 30-50days according to order quantities.

    - Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.

    - Departure port: Qingdao or other ports according to needs.

    - Delivery term : by sea, by air, by Express



    Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade 2



    Anti Corrosion Metal Post Base Plate For Stainless Steel Balustrade 3
