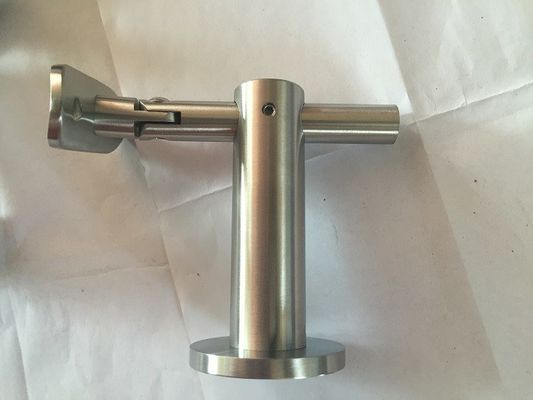

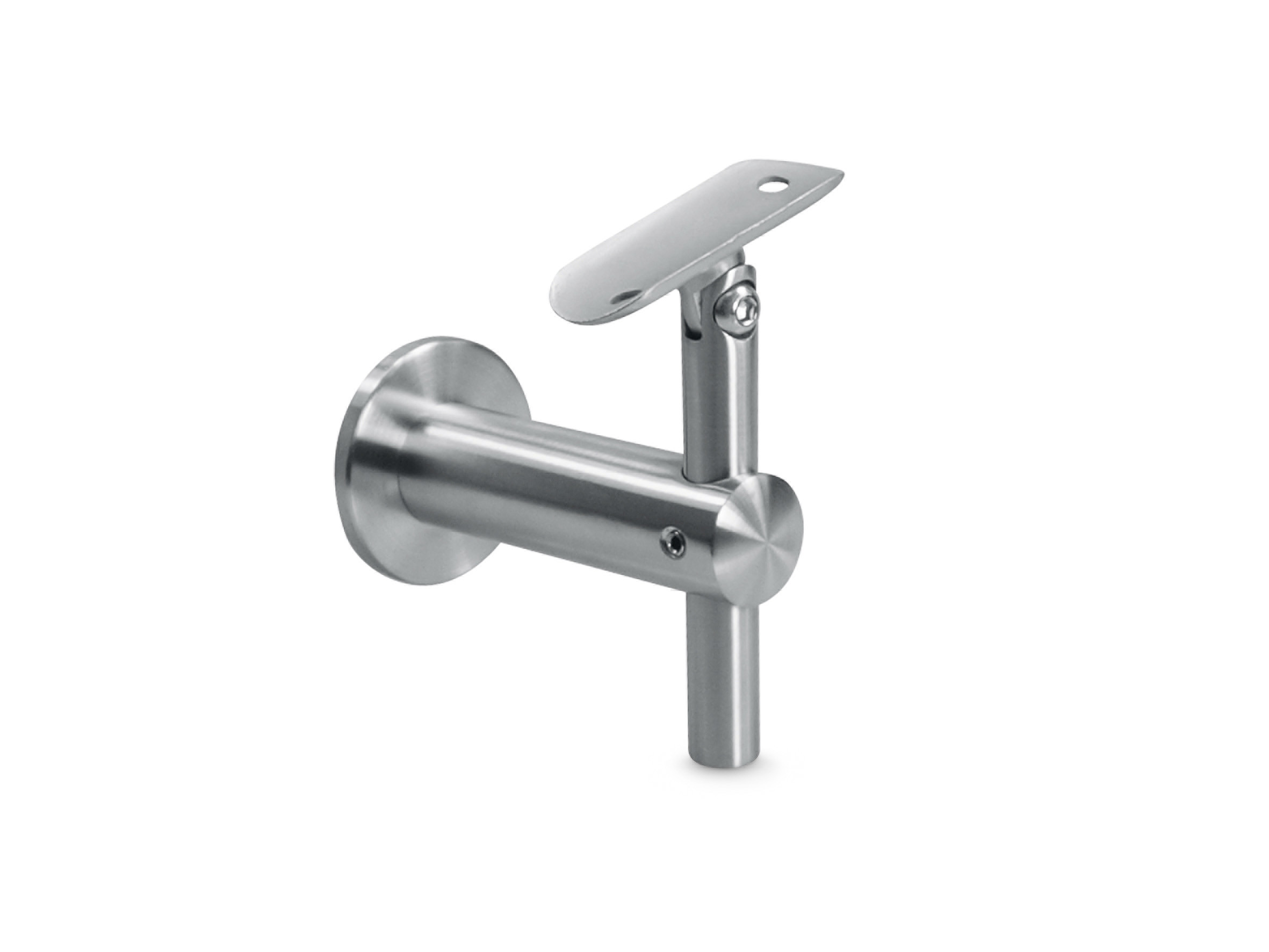

Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems

Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems

  • Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems
  • Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems
Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems
Product Details:
Place of Origin: Qingdao, China
Brand Name: Compass
Certification: ISO 9001, SGS
Model Number: 538
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bag + Box + Carton + Pallet
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Name: Adjustable Wall Mount Bracket Height: 30-80mm Adjutable
Material: V2A, V4A Finish: Brushed, Polished
Base: 50mm Usage: Adjustable Bracket
High Light:

stainless steel handrail fittings

,

stainless steel balustrade fittings

Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems



Item NO. Top saddle Base Rod Height
538.000 flat 50mm 14mm/ 25mm 30 - 80
538.337 33.7mm 50mm 14mm/ 25mm 30 - 80
538.381 38.1mm 50mm 14mm/ 25mm 30 - 80
538.424 42.4mm 50mm 14mm/ 25mm 30 - 80
538.483 48.3mm 50mm 14mm/ 25mm 30 - 80
538.508 50.8mm 50mm 14mm/ 25mm 30 - 80



This series can be used in both inetrior and outdoor, for residential and commercial buildings. The quality materials keep them corrosion resistance, anti-rust and eco-friendly in nature.



Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems 0



Compass Railing Service.


- Provide fast delivery and competitive price for bulk quantity orders.
- Provide swaging service for different assembly orders to help customers save time and money.( Compass could finish swaging job up to 12mm cable)
- Provide professional ideas on choosing suitable fittings for your projects
- Provide completed packaging of all items required in your projects(cable assembly, predrilled posts, handrail, post components and tools)
- Provide free samples service on customer new creative ideas.



Material Standard(%)



AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00



304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.



316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.



316L is the low carbon version of 316.



General information.



1. Material is in SS304 (V2A) or SS316 (V4A).

2. Surface could be brushed(satin) or polished(mirror) according to requirements.

3. Available top saddle is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.

4. The base is in 50mm or customized

5. Lead time : 35-45days according to order quantity.

6. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.

7. Delivery term : FOB, CIF, CFR, DDU, DAP.

8. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.



Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems 1



Adjustable Wall Mount Bracket for Stainless Steel Hand Railing Systems 2
