Place of Origin: | Qingdao, China |
Brand Name: | Compass |
Certification: | ISO 9001, SGS |
Model Number: | 506 |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Bag + Box + Carton + Pallet |
Delivery Time: | 30-40days according to quantity |
Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
Supply Ability: | 10000pcs per month |
Product: | Adjustable Post Mounts | Type: | Adjustable Tube Support |
---|---|---|---|
Height: | 78mm | Top Saddle: | Flat Or Round For 33.7, 38.1, 42.4, 48.3, 50.8mm |
Post DIA.: | 33.7, 38.1, 42.4, 48.3, 50.8mm | Finish: | Brushed, Polished |
High Light: | stainless steel rail fittings,stainless steel balustrade fittings |

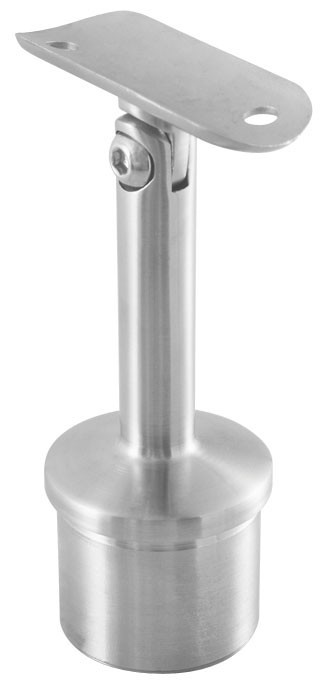

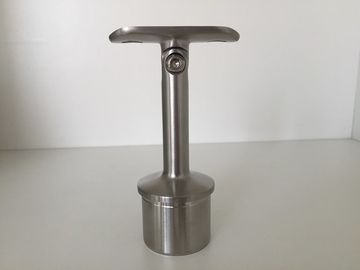

Stainless Steel and Glass Railing Systems Components, Adjustable Post Mounts
This is designed for both indoor and outdoor uses, easily accommodated either glass or rod infill. From office buildings to apartment complexes, balconies to separations, no welding required.
Item | Stainless Steel and Glass Railing Systems Components, Adjustable Post Mounts |
Material | AISI3041, AISI316 |
Finish | Satin, Mirror |
Diameter | 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm |
Tube thickness | 1.5mm, 2mm or customized |
Packing | Box + carton + pallet |
Lead time | 35-45days |
Type | Adjustable pipe support |
Application | Support handarils for glass or infill railings |
Free samples | Available |
Delivery term | FOB, CIF, CFR, DDU, DAP |
Remarks.
For this series, the top saddle could coud work with tubes in the same diameter with the bottom, or they can work with different diameter pipes according to special requirements. Send us the dimensions you need, more information could be confirmed accordingly.
Advantages.
1. One-stop supplier
With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.
2. Standard materials is as following
AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
3. Destination service.
DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.
4. Steady and fast delivery time
With strickt controlling system according ISO9001, steady delivery time can be confirmed.
Casting ones need 35-40days.
Machining ones need 20-35days.
Tubes and rubbers need 20days
5. Low MOQ.
As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.
6. OEM & ODM
With professional technical team, new designs and customnized parts are welcomed.
7. Free samples are available for checking
Available dimensions.
Item NO. | Top saddle | Bottom Dia | Height | Material |
506.000 | flat | According to needs | 78mm | AISI304, AISI316 |
506.337 | 33.7mm | 33.7mm | 78mm | AISI304, AISI316 |
506.381 | 38.1mm | 38.1mm | 78mm | AISI304, AISI316 |
506.424 | 42.4mm | 42.4mm | 78mm | AISI304, AISI316 |
506.483 | 48.3mm | 48.3mm | 78mm | AISI304, AISI316 |
506.508 | 50.8mm | 50.8mm | 78mm | AISI304, AISI316 |
