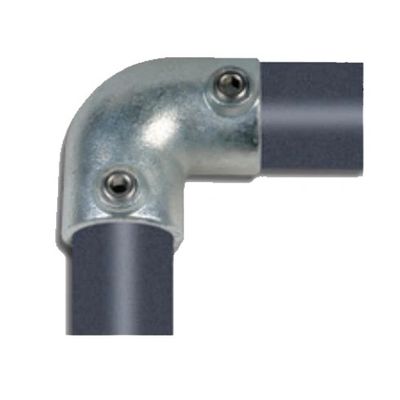

ASTM A197 Malleable Iron Pipe Clamp Fittings For Straight And Level Guardrail

ASTM A197 Malleable Iron Pipe Clamp Fittings For Straight And Level Guardrail

  • ASTM A197 Malleable Iron Pipe Clamp Fittings For Straight And Level Guardrail
  • ASTM A197 Malleable Iron Pipe Clamp Fittings For Straight And Level Guardrail
ASTM A197 Malleable Iron Pipe Clamp Fittings For Straight And Level Guardrail
Product Details:
Place of Origin: Qingdao, China
Brand Name: Compass
Certification: DIN
Model Number: C116
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton + plywood pallet
Delivery Time: 30-40days according to quantity
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Name: Malleable Iron 3 Way Through Connectors Material: Malleable Iron By Standard ASTM A197
Surface: Hot DIP Galvanized, Black, Powder Coated Color: Silver, Black Or According To Needs
Elongation: >10% Packing: Carton + Plywood Pallet
High Light:

iron pipe fittings

,

iron pipe connectors

Malleable Iron 3 Way Through Connectors Pipe Clamp Fittings, Key Clamps





Applications.

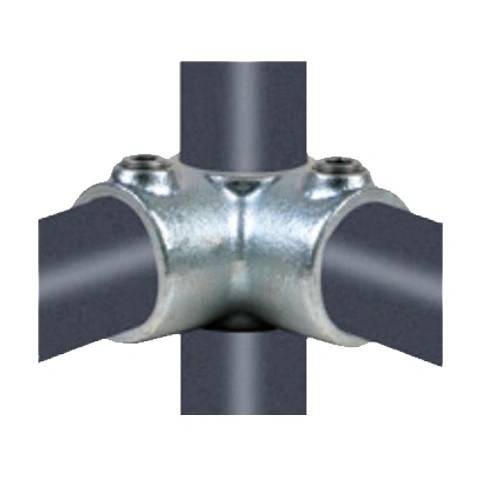

A 90° corner joint with the vertical passing through the Q clamp fitting. Typical use is on straight and level guardrail for connecting the mid/lower
rail to the vertical at a 90° corner. Can also be used in a similar way on other rectangular structures.


Material
Compass pipe clamps are designed by using malleable iron in accordance with ASTM A197 which applies for good mechanical strength and enough elongation characters. The surface treatment of the clamps is hot dipped galvanized which meet the specification of ASTM A153 to anti-rusting and corrosion, the surface can also be
Black or Powder Coated according to needs.



What can Compass do for you?

  • Stable quality control system
  • Competitive and reasonable price
  • Fast and on-time delivery time
  • Reliable destination service
  • Professional after-sale service

General terms.

- Lead time: 30-50days according to order quantities.

- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.

- Departure port: Qingdao or other ports according to needs.

- Delivery term : by sea, by air, by Express



Compass is located in Qingdao city, China, who have manufactured and supplied stainless steel railings and fittings for more than 10 years, partners covers more than 30 countries.



Keeping long-term cooperation with every partner is our principle, so steady quality in products and service, no-time delivery and professional after sale service are the most important factors we stick to.



Customized parts can also be manufactured according to needs.



Available dimensions

Six different sizes are available as following.

Pipe Clamp Size Nominal Bore Outside Diameter
T 1/2'' 21.3mm
A 3/4'' 26.9mm
B 1'' 33.7mm
C 1-1/4'' 42.4mm
D 1-1/2'' 48.3mm
E 2'' 60.3mm



Item NO. Weight( KG/pc) Surface Carton sizes
C116-A 0.27 black, hot galvanizing, electrogalvaning 340*260*240mm
C125-AD 1.11 black, hot galvanizing, electrogalvanizing 340*260*240mm
C125-B 0.40 black, hot galvanizing, electrogalvanizing 340*260*240mm
C125-C 0.61 black, hot galvanizing, electrogalvanizing 340*260*240mm
C125-D 0.72 black, hot galvanizing, electrogalvanizing 340*260*240mm
C125-E 1.16 black, hot galvanizing, electrogalvanizing 340*260*240mm
C125-T 0.20 black, hot galvanizing, electrogalvanizing 340*260*240mm



Specifications

Material Malleable Iron by Standard ASTM A197
Surface Hot galvanized, electrogalvanizing, power coated, black
Screw Stainless Steel
Tensile Strength ≥350MPa
Elongation ≥10%
Hardness HB≤150
Size Available T-E(21.3-60.3mm)
